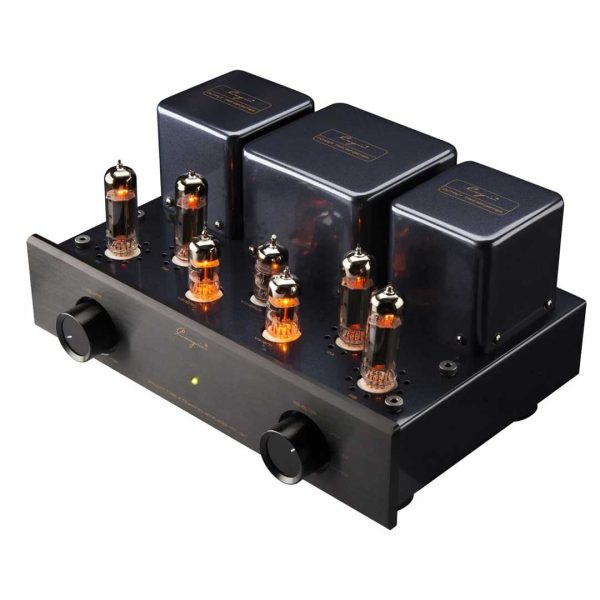

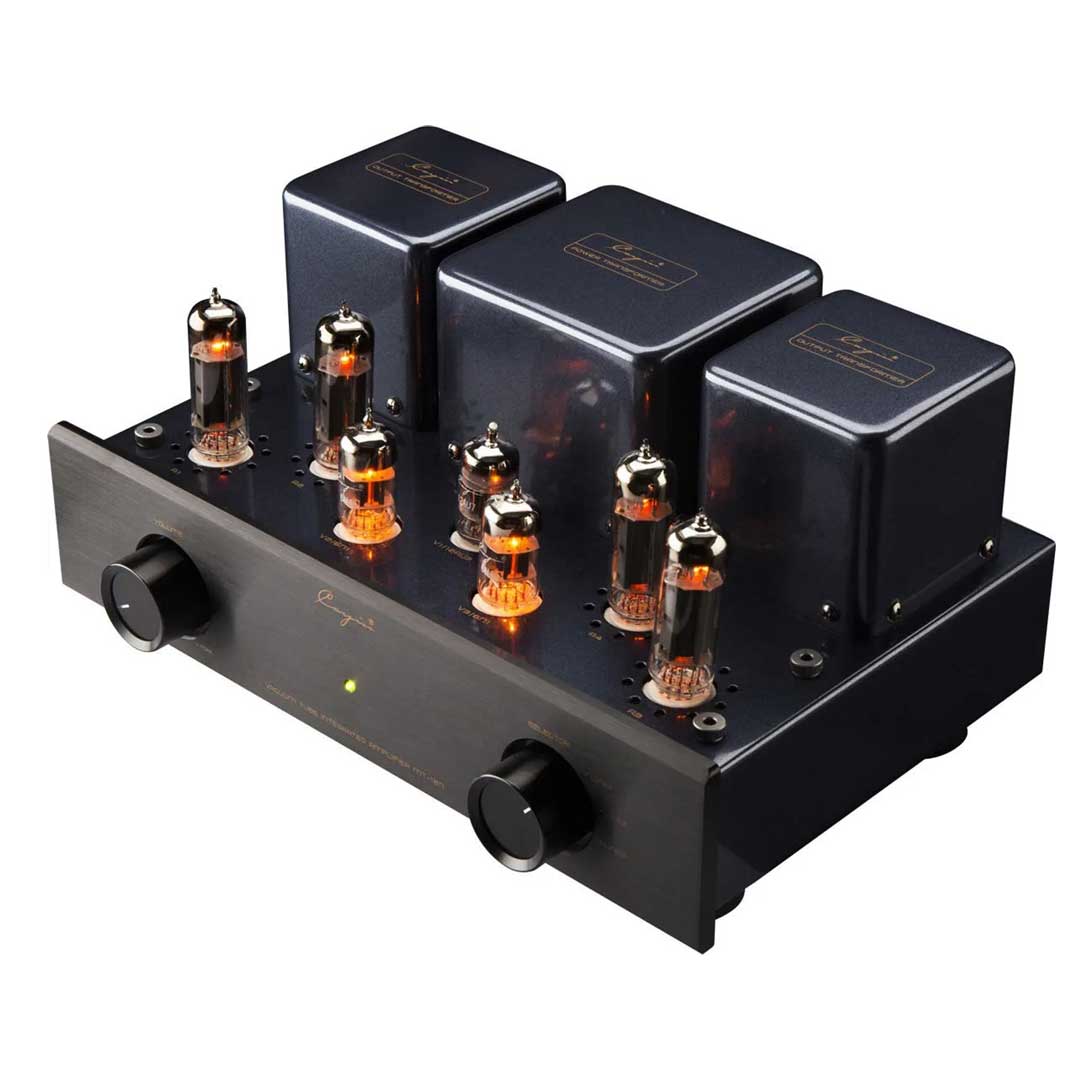

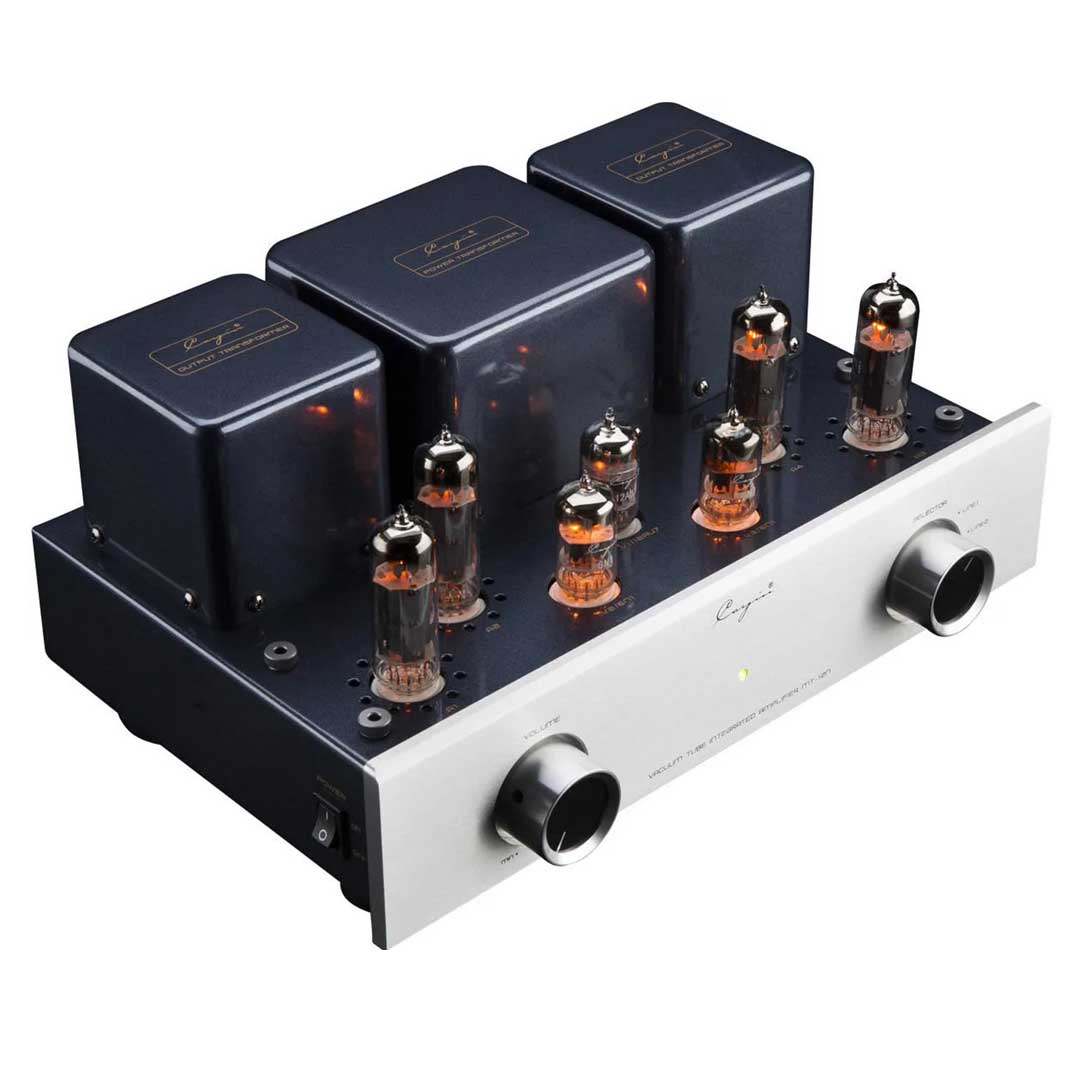

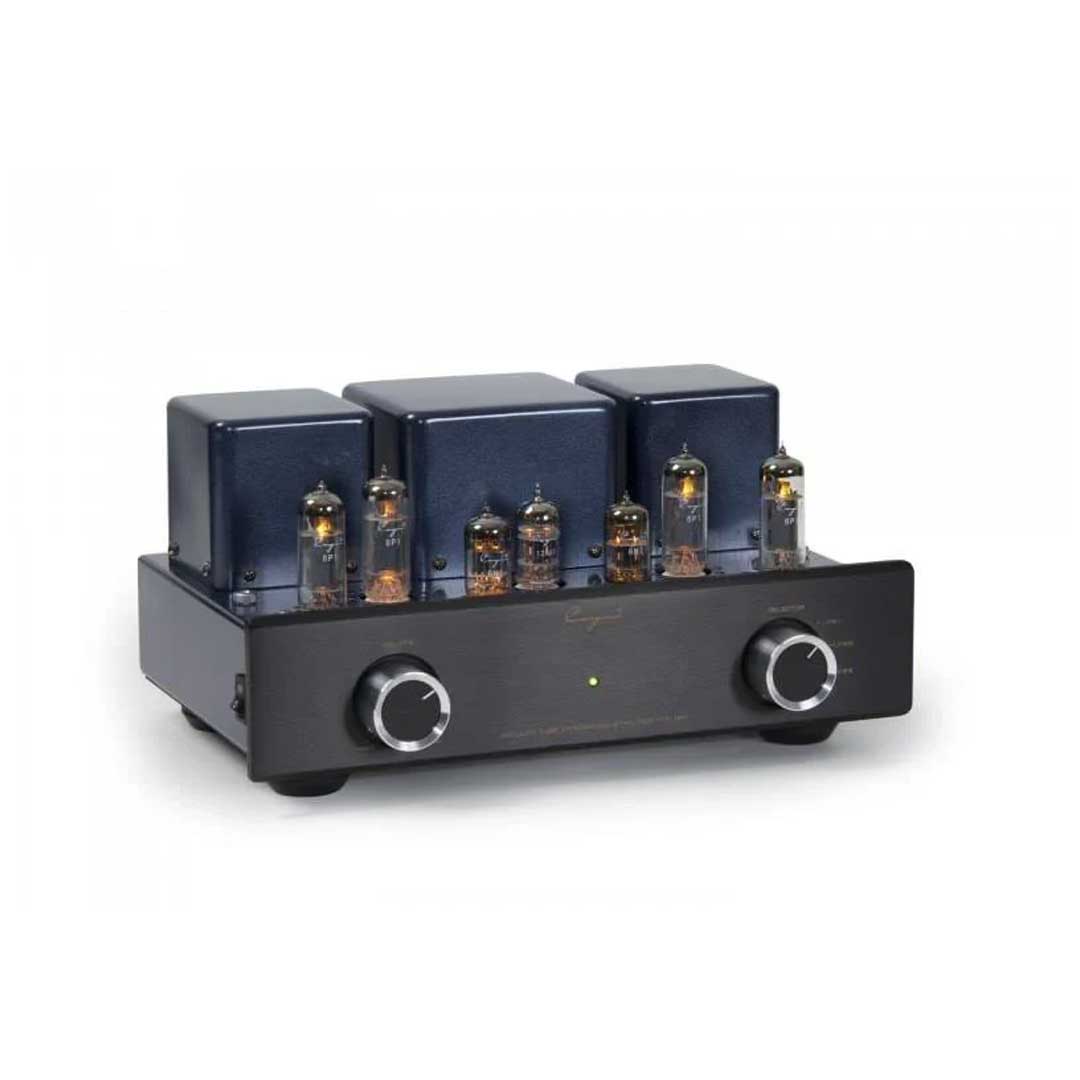

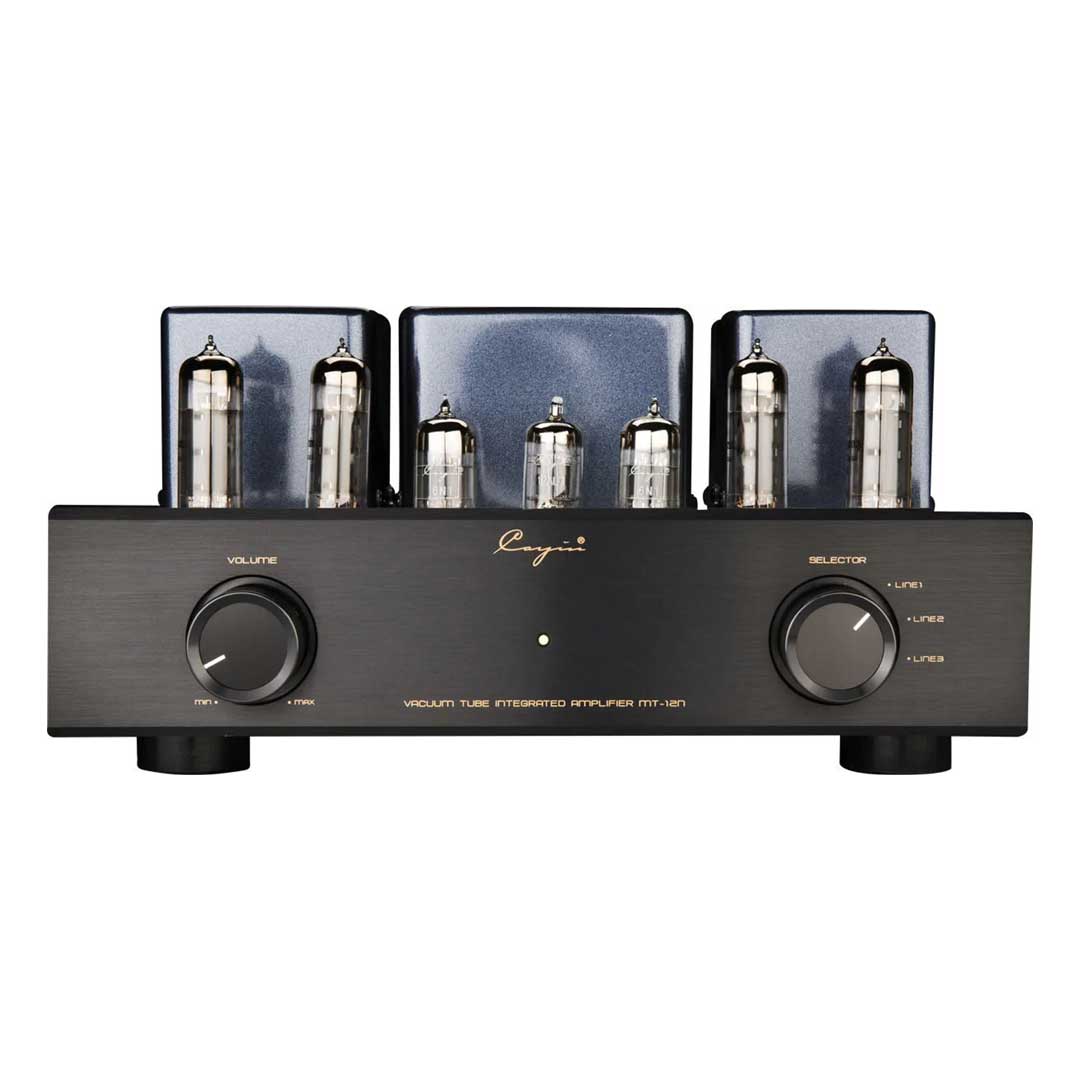

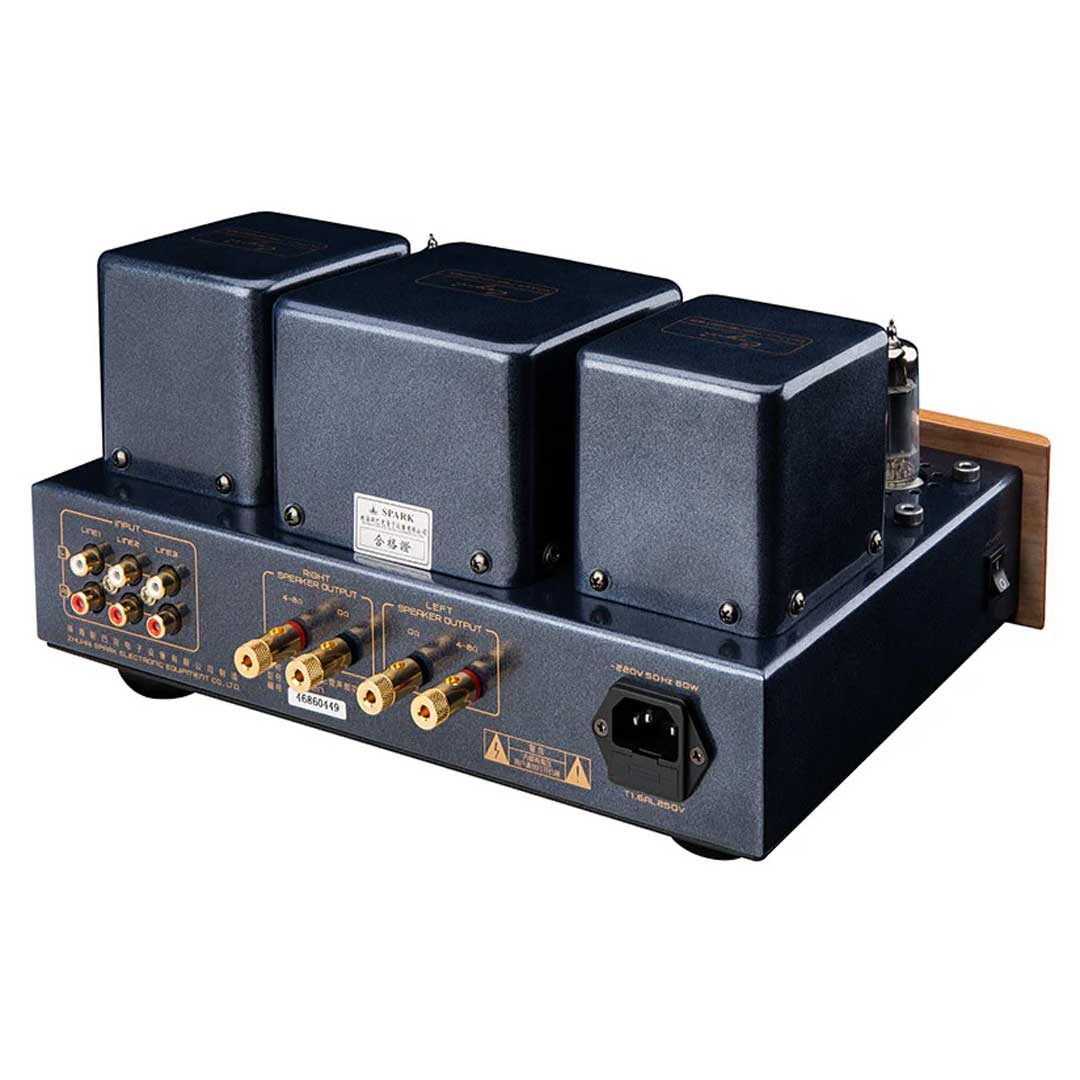

Cayin MT-12N EL84EH Integrated Amplifier
The Cayin MT-12N EL84EH Integrated Amplifier is a tube amplifier hand-made construction meticulously handcrafted with precise point-to-point wiring, ensuring exceptional build quality.
It features two wide bandwidth EI output transformers for superior audio performance. The power supply is equipped with a specially designed toroid transformer.

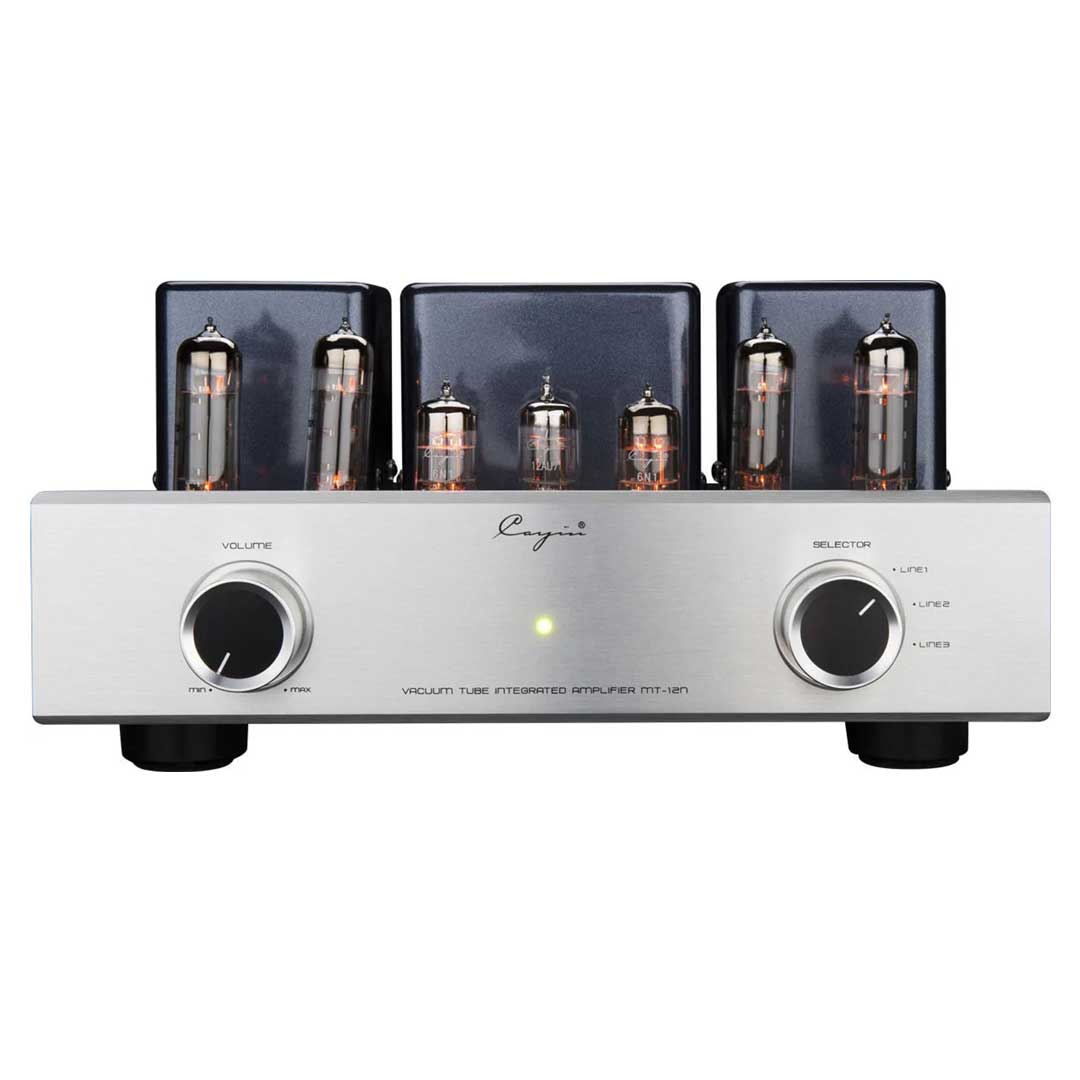

In the preamplifier stage, a single 12AU7 tube is used for voltage amplification, while two 6N1 tubes are employed for drive amplification. The amplifier utilizes four EL84EH tubes for AB1 push-pull amplification.

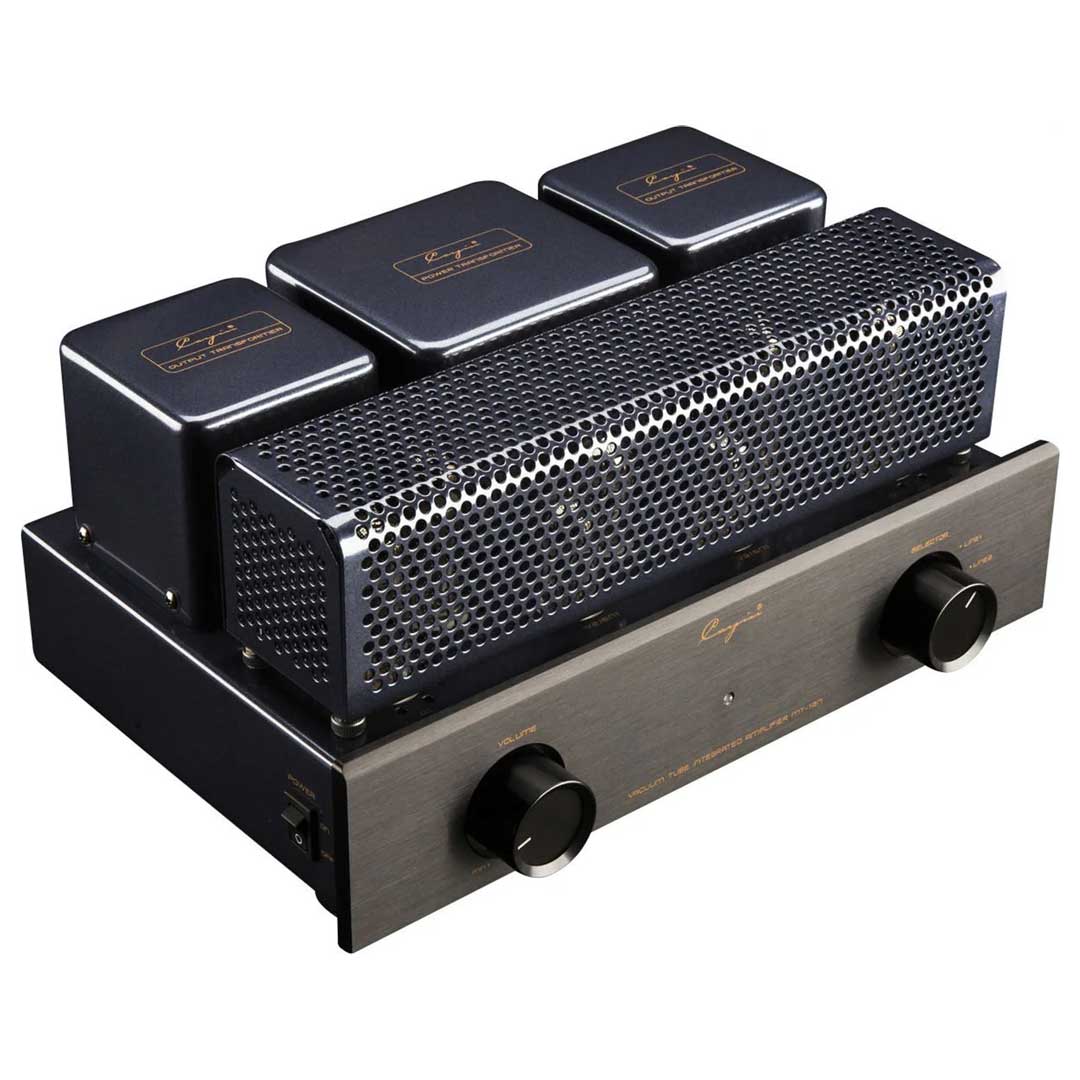

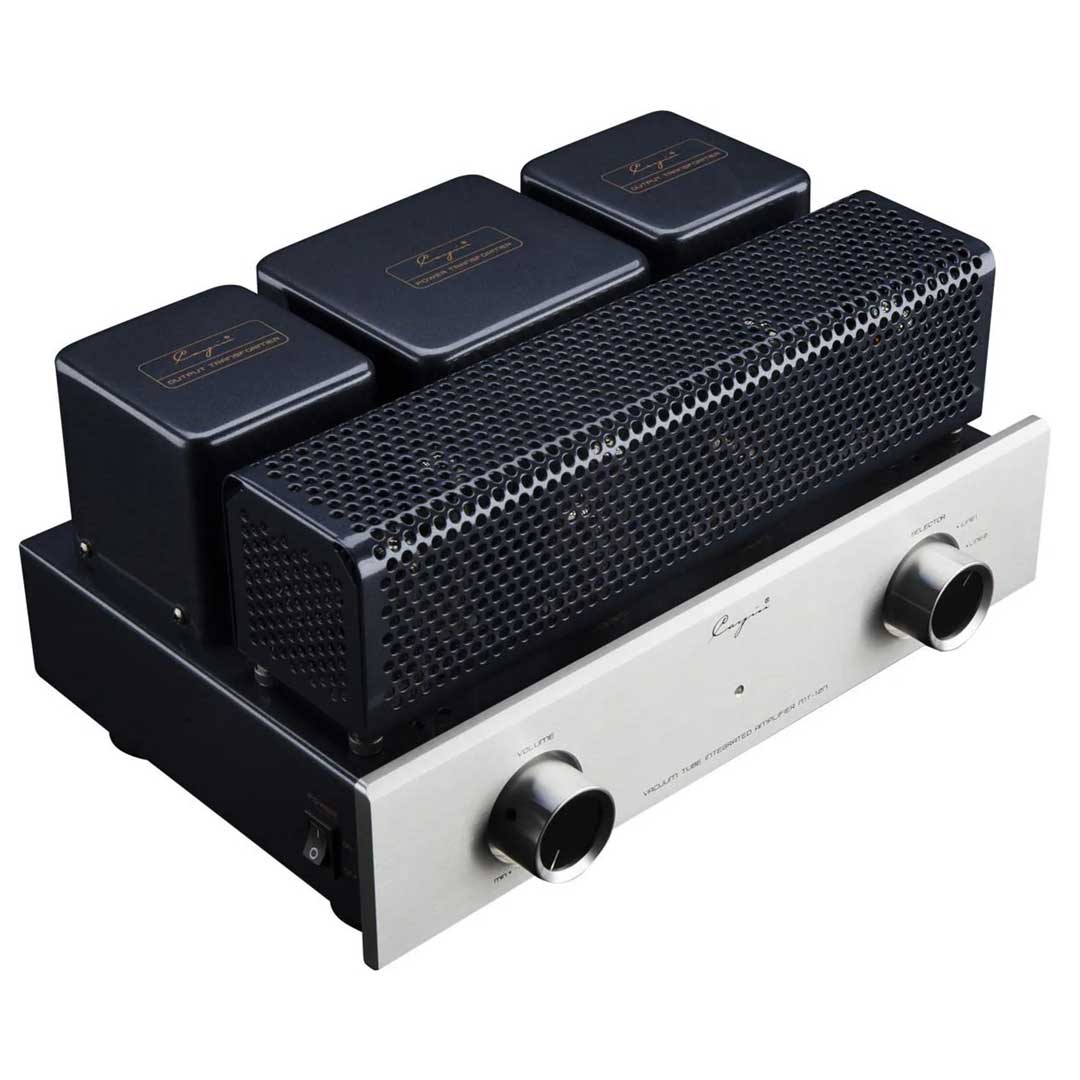

To ensure smooth and precise volume control, a high-quality Japanese ALPS potentiometer is incorporated. Additionally, the amplifier comes with a convenient tube cover that can be easily installed to provide protection for the tubes.
View Cayin Audio Products >>
Features
- Four EL84s are used for class AB1 P.P amplification. This vacuum tube not only is of great speed to the music signal, but also high dynamic.
- The toroid power transformer and EI audio transformer are specially manufactured for Cayin MT-12 by applying our unique workmanship, which has low magnetic leakage, wide frequency response and low impedance.
- One 12AU7 and two 6N1s are used in the preamplifier.
- The high quality capacitor is selected in the coupling circuit.
- The input position is selected in the coupling circuit.
- All-vacuum tube design, all hand-made.
Specifications
- Power Output: 10W+10W
- Frequency Response: 9Hz~45kHz(-3dB)
- THD: 0.5%(1kHz)
- S/N Ratio: 87dB
- Input Sensitivity: 230mV
- Input Impedance: 100kΩ

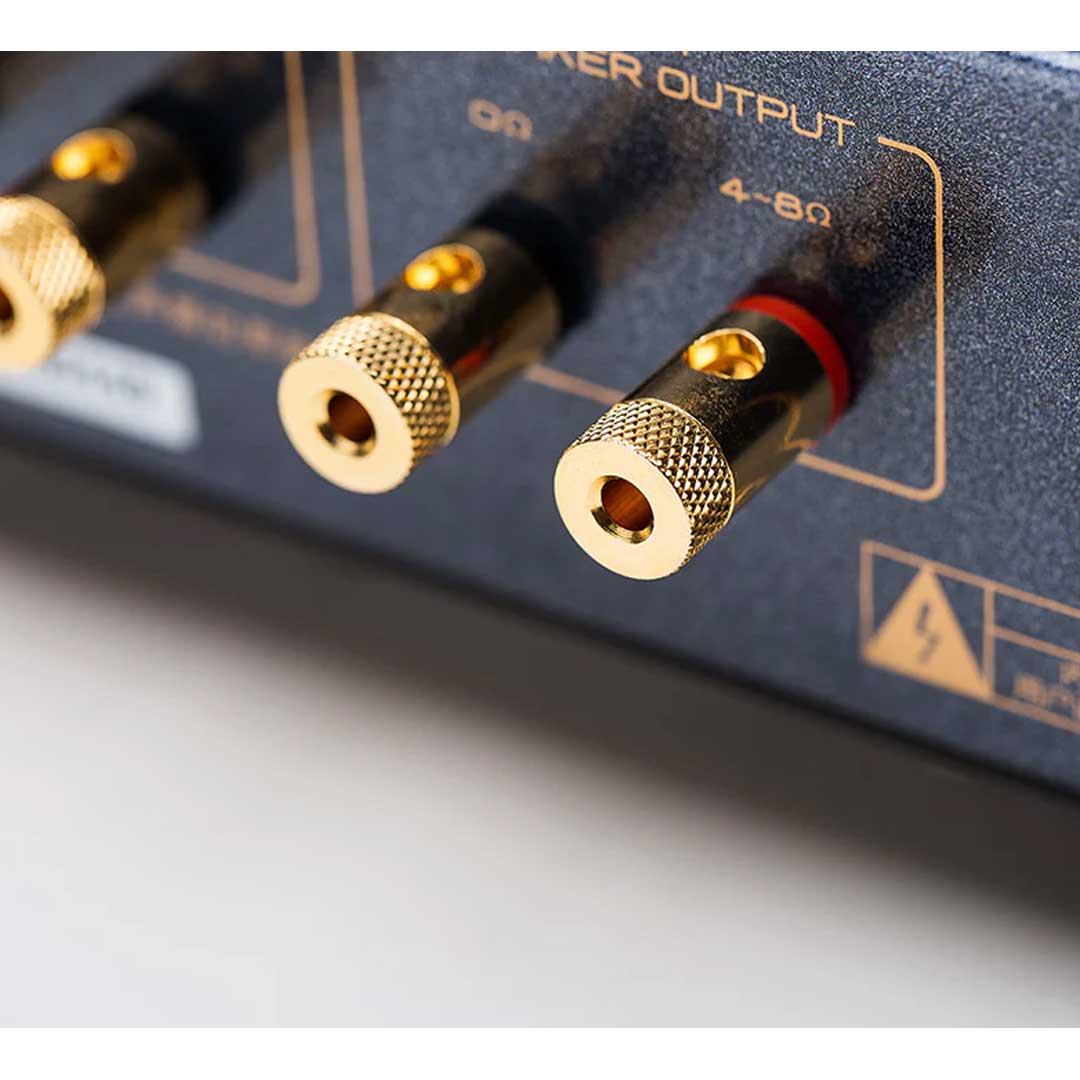

- Output Impedance: 4Ω～8Ω
- Max Power Consumption: 80W
- Tube: 12AU7, 6N12, EL84EH4
- WDH: 330×245×160mm³
- Net Weight: 8.3kg
- Working Condition Temperature: 0°C~40°C / Moisture 20%~80%
- Storage Condition Temperature: -20°C~70°C / Moisture 20%~90%
