Description
BenQ AK700ST 4K Short Throw Laser Golf Simulator Projector
The BenQ AK700ST 4K Short Throw Laser Golf Simulator Projector eliminates the hassle of adjusting screen ratios, so you can effortlessly enjoy a complete 4K entertainment experience with family and friends.
Features
- Exclusive Auto Screen Fit for effortless full-screen projection
- Enjoy seamless transitions with exclusive Auto Screen Fit for full-screen projection at the touch of a button
- BenQ’s exclusive golf color modes for ultimate simulation
One Projector, Two Amazing Experiences
With the BenQ AK700ST, you can effortlessly switch aspect ratios with just one button, ensuring full-screen enjoyment without wasting time on settings.
Kickstart your Simulator with BenQ’s Planning Tool
Get started on the right foot with BenQ Golf-Sim 3D Planner tool, simplifying the initial installation process for first-timers.
+Enter your values for a 360-degree installation simulation
Auto Screen Fit
Automatically detects and adjusts to your impact screen’s aspect ratio, maintaining optimal resolution.
*Note:
- Auto Screen Fit supports 16:9, 16:10, 4:3, and 1:1 aspect ratios.
- For non-standard aspect ratios, please view the video and adjust via graphic card settings.
- Enclosure or screen black border requires at least 6 cm of width.
Quick Focus
Press the Quick Focus button on the remote control and make slight manual adjustments to deliver clear images.
Short Throw Lens Designed for Golf Sim
Swing safely without fear of damage or shadows.
Safe Short-Throw Solution
The AK700ST enables a safe and shadow-free location for your swing.
- Traditional short throw projectors: Positioned too close to the hitting area, creates potential collision risks.
- AK700ST: Positioned behind the hitter, lowering collision risks and eliminating shadows.
Up to 200-Inch Display
AK700ST features a professional-grade motorized lens with 1.2x optical zoom flexibility. Easily adjust screen size without reinstalling, ensuring no loss in picture quality.
Bring the Course Home
AK700ST’s laser technology, paired with BenQ’s expert color calibration, delivers top-quality visuals, faithfully reproducing golf course colors.
4K Detail Visibility
With true 4K resolution and 8.3 million pixels, AK700ST reveals every detail of the golf course terrain and grass, enhancing texture richness.
Full Immersion with Curved Screen via Warping Features
Take your golf sim to the next level with a curved screen setup. AK700ST supports image warping for curved screens, with four selectable matrix options (5×3 / 10×5 / 15×9 / 24×15). This feature is ideal for an immersive golf simulation experience.
*Note:
- Auto Screen Fit, Focus, Corner Fit, and Keystone will be not available for adjustment once warping is enabled.
- Warping will be not available for adjustment once Screen Fill is set to 16:10, 4:3, or 1:1.
Perfect for Any Lighting
The AK700ST’s laser light source delivers 4000 lumens of brightness and high contrast, ensuring stunning visuals in any lighting condition.
- Lights On: Clear contrast and vibrant colors even in a well-lit living room.
- Lights Off: Sharp contrast and vivid colors in low-light settings.
True-to-Life Golf Course Colors
Experience authentic colors from the start with BenQ’s exclusive Golf Mode, tailored for different golf course environments that ensure an immersive experience from the most famous courses in the world.
+Discover why golf mode earns designer recognition

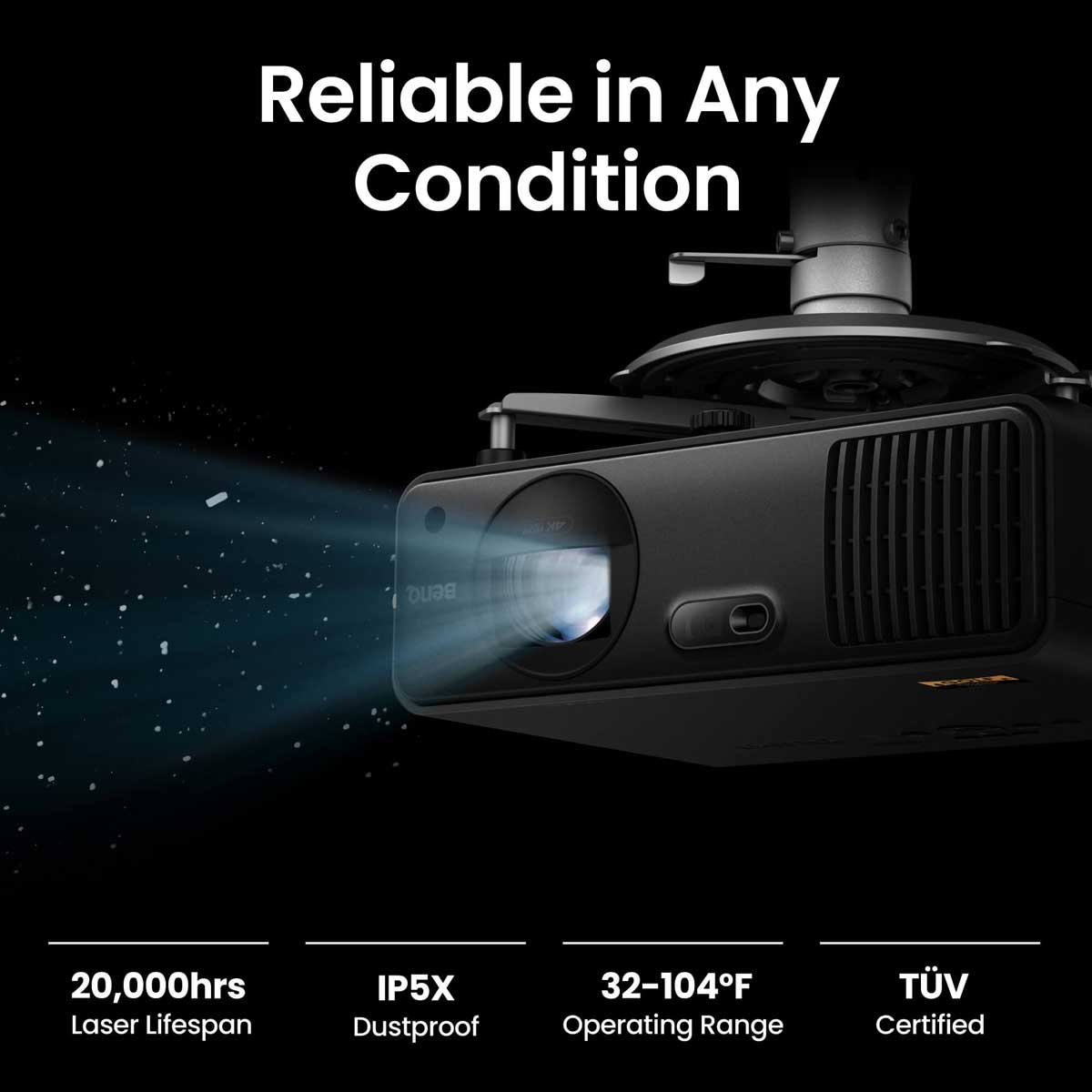

Tough Enough for Any Garage
AK700ST’s IP5X dustproof sealed engine operates reliably in temperatures from 32-104°F, eliminating the need for regular filter replacements.
Durable Laser Technology
The AK700ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.
Ready for Wireless Projection
With an optional dongle, AK700ST’s Wi-Fi capability facilitates wireless projection from any devices, eliminating the need for cables.
*Note:
- BenQ WiFi dongle (EZC5201BS) enables instant wireless output of 1080p 16:9 content.
- If you’re pairing with the 4:3, 16:10, 1:1, or non-standard impact screen, your image might have distorted while connecting.
- Connectivity Support Based on Launch Monitor Connection Type:
- Wired (CAT 6 cable to PC): Supported > e.g., Uneekor QED, EYE XO, EYE XO2
- Bluetooth (to iPad/iPhone): Supported > e.g., Garmin R10
- Wi-Fi (to PC/iPad/iPhone): Not supported > e.g., Mevo+
Specifications
Display
- Brightness (ANSI lumens): 4000
- Resolution: 4K UHD (3840×2160)
- Native Aspect Ratio: 16:9
- Contrast Ratio (FOFO): 3,000,000:1
- Display Color: 30-bit (1.07 billion colors)
- Light Source: Laser
- Light Source Life: 20000 hrs
Optical
- Throw Ratio: 0.69-0.83
- Zoom Ratio: 1.2x
- Lens: F/2.53(Wide), f = 10.2mm(Wide)
- Projection Offset (Full-Height): 102.5%
- Keystone Adjustment: 3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees
- 709 Coverage: 95%
- Picture Modes: 3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2
Compatibility
- Input Lag: 33.4 ms (1080P 60Hz)
- Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
- Horizontal Frequency: 15K~135KHz

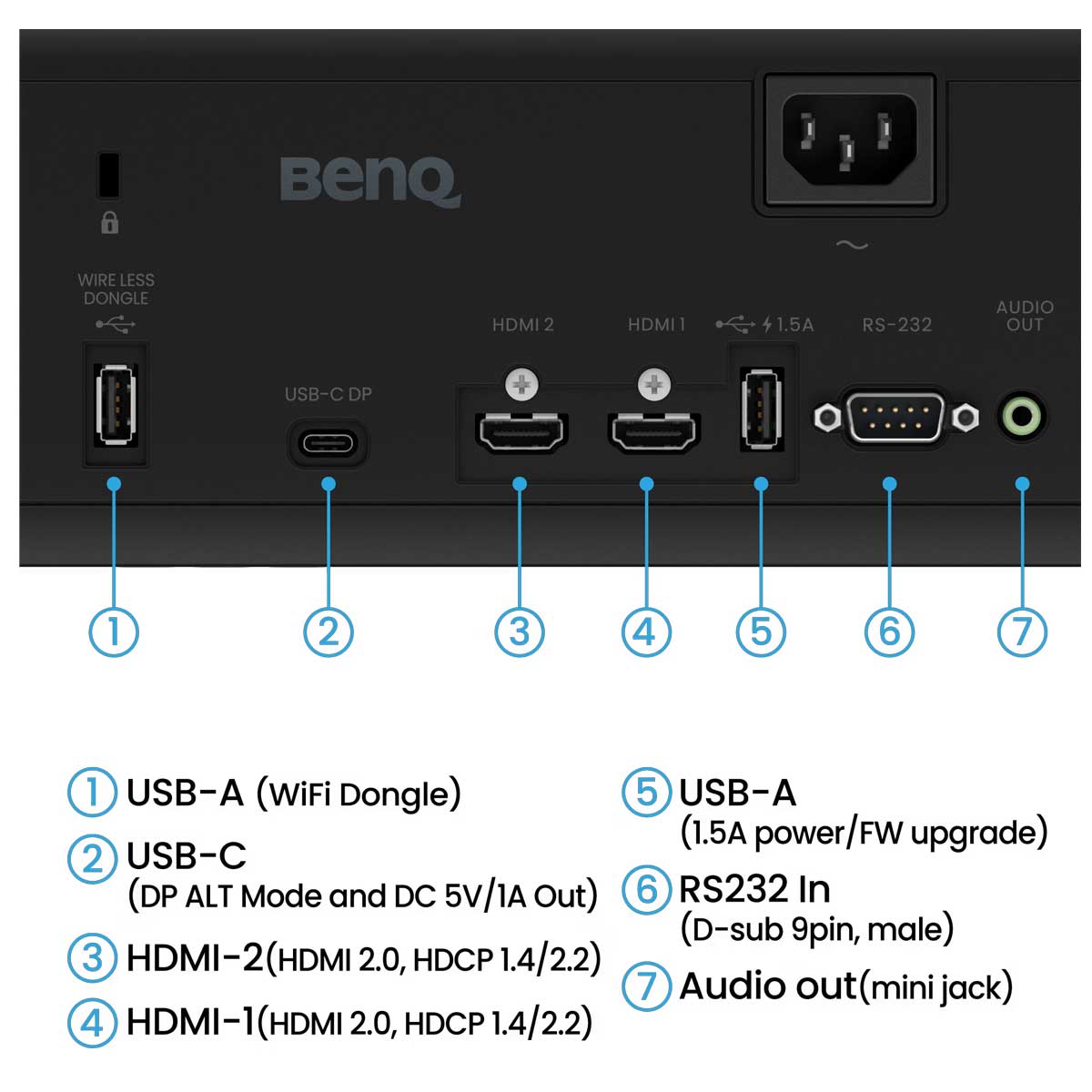

I/O Interface
- HDMI in: (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
- USB Type A: (x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-3 (2.0/Wireless Dongle)
- USB Type C: (x1), Display Port with PD out 5V/1A
- RS232 in (DB-9pin): (x1)
Audio
- Speaker: (x1), 10W
- HDMI Audio Return: eARC, 7.1 channel
Environment
- Operating Temperature: 0~40℃
- Power Supply: AC 100 to 240 V, 50/60 Hz
- Typical Power Consumption (110V): 212W
- Stand-by Power Consumption: <0.5W
- Acoustic Noise (Typ./Eco.)(dB): 32db/29db
Accessories
- Wireless USB dongle: EZC-5201BS 1080p, (Optional)
- Remote Control w/ Battery: RCA011
- Power Cord (by region): x1 (1.8M)
- Quick Start Guide: (x1) 21L
- Warranty Card (by region): Yes
- Universal Ceiling Mount: CM00G3, (Optional)
Dimension & Weight
- Dimensions (WxHxD) (mm): 303.5 x 112.4 x 234.5
- Net Weight (kg): 3.4 Kg +/- 100g
Projection System
- Projection System: DLP
