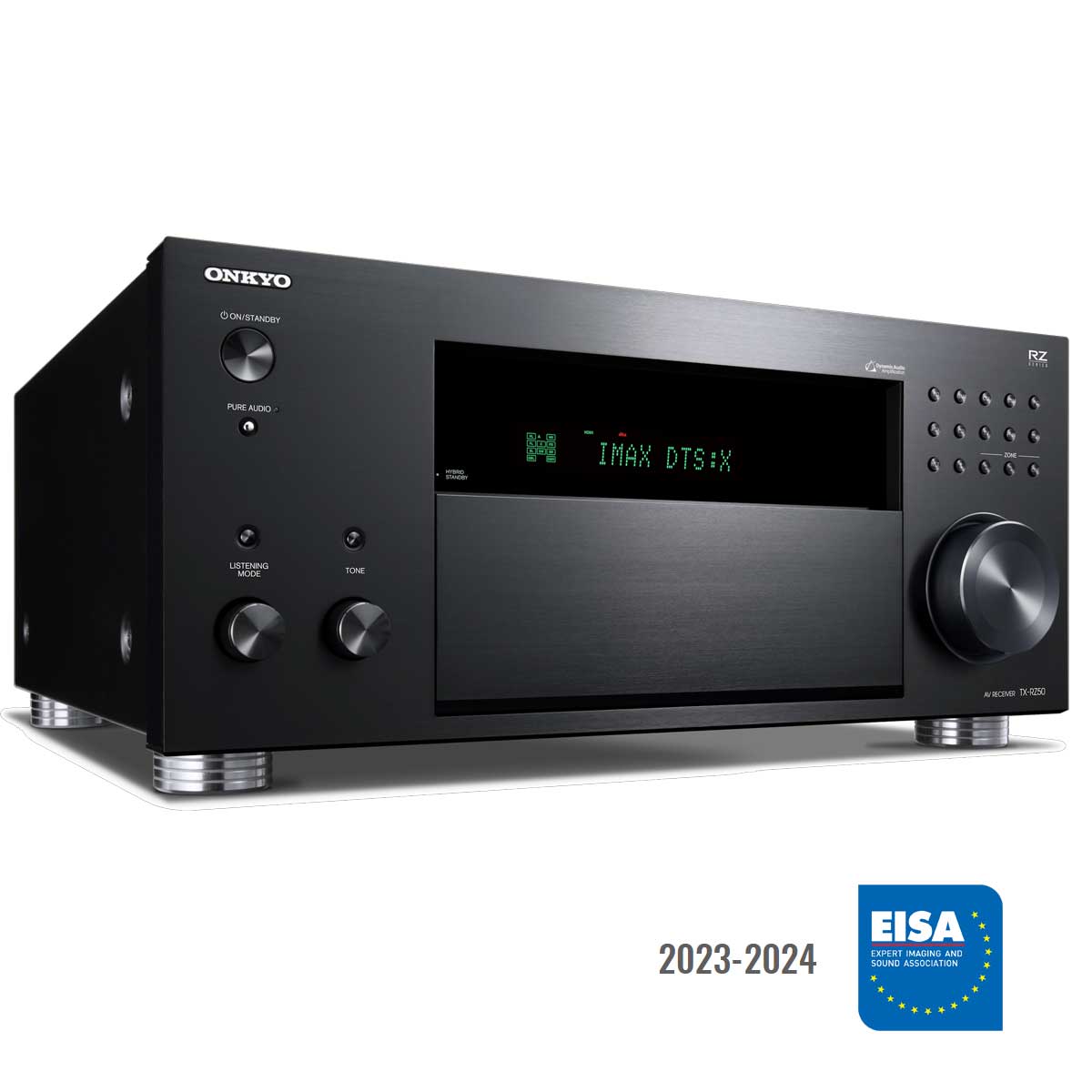

Onkyo TX-RZ50 9.2-Channel THX Certified AV Receiver

$2,999.00 inc GST


The Onkyo TX-RZ50 9.2-Channel THX Certified AV Receiver delivers enormous power on-demand to highlight every nuance of the music, movies, and games you love.

4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. The TX-RZ50 supports higher performance from streaming devices like the latest Apple T

Do you need an expert?

Our customers tell us that they count on our team for more than just knowledge: they’re always friendly & ready to help with all their questions. Contact our team CJ, Bensan or Toki on 092744515 or via sales@rapalloav.co.nz



SKU: TX-RZ50 Categories: , , , Tags: , , , EAN: 889951003687 Brand: GTIN / EAN: 889951003687

Description

Onkyo TX-RZ50 9.2-Channel THX Certified AV Receiver

The Onkyo TX-RZ50 9.2-Channel THX Certified AV Receiver is THX Certified. In 1993, Onkyo became the first consumer home theater electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-RZ50 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.





View User Manual >> View Specifications >>



Features

  • 215W/Ch THX® Certified Select RZ Series Dynamic Audio Amplification
  • Wide 5Hz~100kHz frequency response
  • HDMI® inputs 1–3, Main Out, and Sub/Zone 2 Out (Sub Mode output) support 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit), 4K/120p (4:4:4/10-bit) video passthrough
  • HDMI terminals*1 support HDR10+, Dolby Vision™, and BT.2020 colour; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport) passthrough;
  • eARC (Main Out), and HDCP 2.3
  • SMART AV Receiver™ Works with Sonos*2, Chromecast built-in™, AirPlay 2, DTS Play-Fi®, Spotify®, Amazon Music HD*3, TIDAL, Deezer, TuneIn*4
  • Dolby Atmos® and DTS:X® playback (5.2.4-ch)
  • 11.2-ch processing and pre-outs for 7.2.4 layouts
  • Dolby Atmos Height Virtualizer
  • IMAX Enhanced® certified signature sound by DTS:X
  • Supports Dirac Live® Room Correction
  • AccuReflex™ phase-matching solution for Dolby Atmos-enabled speakers
  • HDMI Main Out with eARC (enhanced Audio Return Channel)
  • HDMI Sub/Zone 2 Out*5 connects a second display or projector
  • Refined HDMI grounds, isolated SoC board, reinforced power lines
  • Quad-core SoC supports 802.11ac (2×2 MIMO) Wi-Fi®*6
  • Powered Zone 2 and Zone 3 speaker outputs
  • Zone 2/Zone B and Zone 3 pre/line-outs distribute D/A audio
  • Stereo Assign Mode supports Height-channel playback
  • DSP-based Vocal Enhancer improves vocal/dialogue audibility
  • OSD function shows A/V input/output signal data, playback settings, and network info
  • Volume memory presets for A/V inputs via the front panel
Klipsch Optimize Mode

Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.

Take the room out of the equation

State-of-the-art Dirac Live Room Correction technology unlocks your loudspeakers’ full potential, improving audio performance across the full frequency band without additional upgrades. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic or virtually wireless with the Dirac Live PC or MacOS* application and a 3rd party USB mic (not included). Now, you’ll get a more accurate measurement of your surround sound system’s positioning to be more precise and balanced, providing a better result with the increased upper limit of delay time from 20 to 50 milliseconds. *Device must be connected to the internet and the same network as your AVR

11.2-Channel Processing

The Onkyo TX-RZ50 9.2-Channel THX Certified AV Receiver features up to 11.2 channel processing and pre-outs for 7.2.4 system layouts, making it an ideal choice for your premium home theater setup.

HDMI 2.1 with 8K

HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.

Additional Features and Benefits

  • ULTIMATE 4K GAMING EXPERIENCE – 4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. The TX-RZ50 supports higher performance from streaming devices like the latest Apple TV.
  • DISCRETE ZONE 2 HDMI SWITCHING – Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.*8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used.
  • THX CERTIFIED – In 1993, Onkyo became the first consumer home theater electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-RZ50 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.
  • IMAX ENHANCED MODE – In 1993, Onkyo became the first consumer home theater electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-RZ50 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.
  • BUILT-IN MULTI-ZONE STREAMING AND VOICE CONTROL – The Onkyo TX-RZ50 9.2-Channel THX Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.**A third-party AI device is required for voice commands – sold separately ***8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used
  • WORKS WITH SONOS CERTIFIED – This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app*. The TX-RZ50 can work with up to three Sonos Ports—one for each of three independent zones—each playing a completely different streaming service from Sonos Radio. *Sonos Port required and sold separately.
  • BUILT-IN STREAMING SERVICES – Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
  • BI-DIRECTIONAL BLUETOOTH WIRELESS TECHNOLOGY- This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
  • READY FOR DTS PLAY-FI – DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.



Specifications

PRODUCT HIGHLIGHTS

250 W/Ch THX® Certified Select RZ Series Dynamic Audio Amplification
IMAX® Enhanced certified for immersive signature sound by DTS:X®
11.2-ch processing and pre-outs for 7.2.4 layouts
Supports Dirac Live® Room Correction 20Hz to 20kHz
AccuReflex phase-matching solution for Atmos-enabled speakers
SMART AV Receiver™ Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services
Works with Hey Google or Alexa Sold separately
Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard
HDMI® inputs Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support 8K/60B and 4K/120AB. Front HDMI Input supports up to 4K/60 (HDMI 2.0).
HDMI 2.1 HDMI 2.1 features that are supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).
HDMI Sub/Zone 2 Out for media transmission to a second display
Send or receive audio via Bluetooth® wireless technology RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD
Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
5.2-ch Main + Powered Zone 2 + Powered Zone 3 speakers support synced/independent D/A audio playback
Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks

AMPLIFIER

Power output (All channels) 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven) 120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC)
Dynamic power 250 W (3 ohms, Front) 220 W (4 ohms, Front) 130 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
Frequency response 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone control ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
Speaker impedance 4–16 ohms

TUNER

FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM preset memory 40 stations

GENERAL

Power supply AC 120 V~, 60 Hz
Power consumption (operating) 850 W
Power consumption (idle) 75 W
Power consumption (standby) 0.1 W
Dimensions (W x H x D) 17 1/8˝ x 7 15/16˝ x 15 11/16˝ (435 x 201.5 x 398 mm)
Weight 30.9 lbs. (14.0 kg)

CARTON

Dimensions (W x H x D) 22 7/16˝ x 13 3/16˝ x 19 5/16˝ (570 x 335 x 490 mm)
Weight 37.5 lbs. (17.0 kg)

ACCESSORIES INCLUDED

Power cord
Indoor FM antenna
AM loop antenna
Speaker setup microphone
Quick Start Guide
Remote control
Two AAA (R03) batteries



Additional information

Weight 14 kg
Dimensions 39.8 × 43.5 × 20.1 cm
Brand

Onkyo
