Marantz AV 30 11.4 Channel Balanced AV Preamplifier

Description

About the Marantz AV 30 11.4 Channel Balanced AV Preamplifier

The Marantz AV 30 11.4 Channel Balanced AV Preamplifier supports Dolby Atmos, DTS:X Pro, AURO-3D, IMAX Enhanced, 360 Reality Audio, and MPEG-H, with up to 11.4 channels of processing. It also features balanced XLR and unbalanced RCA preamp outputs for all 11.4 channels, including four independent subwoofer outputs, which makes it highly flexible for multi-subwoofer cinema rooms.

The AV 30 includes 7 HDMI inputs, 3 HDMI outputs, 8K/60Hz and 4K/120Hz HDMI 2.1 support, HEOS streaming, Audyssey MultEQ XT32 room correction, and optional Dirac Live upgradeability. It is crafted in Shirakawa, Japan, and finished in Marantz’s premium modern design language with porthole OLED display, metal front panel, and soft side illumination.

What We Think

At Rapallo, the Marantz AV 30 is the ideal control centre for customers who want a proper home theatre separates system, but do not need the larger channel count or higher cost of the AV 20 or flagship AV 10.

The key advantage is flexibility. With 11.4-channel processing, balanced and unbalanced preamp outputs, four independent subwoofer outputs, and advanced room correction, the AV 30 can anchor a serious Dolby Atmos or DTS:X theatre system. It is especially useful when paired with dedicated power amplifiers, because you are not limited by the amplifier channels built into an AV receiver.

We also like that Marantz includes both Audyssey MultEQ XT32 and Dirac Live upgradeability. Audyssey gives you strong room correction out of the box, while Dirac Live opens the door to more advanced calibration later. That makes the AV 30 a good long-term processor for rooms that may be upgraded over time.

For NZ home theatre customers, the AV 30 makes most sense with the Marantz AMP 30 6-channel power amplifier, or with multiple Marantz amplifiers for larger layouts. Add quality speakers, correct subwoofer placement, and proper calibration, and the AV 30 becomes the heart of a refined, scalable cinema system.





View Info Sheet >> View Product Specifications >> View Marantz Products >>



The Marantz AV 30 Is Ideal For

• Premium home theatre separates systems
• Dedicated Dolby Atmos and DTS:X cinema rooms
• Customers upgrading from an AV receiver
• Systems needing balanced XLR outputs
• Multi-subwoofer installations
• Large media rooms with external power amplification
• Users who want Audyssey now and optional Dirac Live later



Frequently Asked Questions

1. What is the Marantz AV 30?
   The Marantz AV 30 is an 11.4-channel balanced AV preamplifier / processor for premium home theatre separates systems. It handles surround processing, HDMI switching, room correction, streaming, and preamp output, but requires separate power amplifiers.
2. Does the AV 30 have built-in amplifiers?
   No, the AV 30 is a preamplifier / processor only. It does not power speakers directly. Pair it with a power amplifier such as the Marantz AMP 30, AMP 20, or AMP 10.
3. How many channels does the Marantz AV 30 process?
   The AV 30 processes up to 11.4 channels, making it suitable for layouts such as 7.4.4.
4. Does the AV 30 have balanced XLR outputs?
   Yes, it has balanced XLR preamp outputs for all 11.4 channels. It also has RCA preamp outputs for all 11.4 channels.
5. How many subwoofers can the AV 30 support?
   The AV 30 has four independent subwoofer outputs. This is useful for smoother bass response across multiple seats in larger rooms.
6. Does the AV 30 support Dolby Atmos and DTS:X?
   Yes, it supports Dolby Atmos, DTS:X, DTS:X Pro, AURO-3D, IMAX Enhanced, 360 Reality Audio, and MPEG-H.
7. Does the AV 30 support 8K and 4K/120Hz video?
   Yes, the AV 30 has seven HDMI inputs with 8K support and HDMI 2.1 features including 8K/60Hz and 4K/120Hz pass-through.
8. What room correction does the AV 30 include?
   The AV 30 includes Audyssey MultEQ XT32 and is upgradeable for Dirac Live. It also supports Audyssey Dynamic EQ, Dynamic Volume, and LFC.
9. Does the AV 30 have streaming built in?
   Yes, HEOS is built in. It supports multi-room streaming, AirPlay 2, Bluetooth, Spotify, TIDAL, Amazon Music, Deezer, TuneIn, Roon Ready support, and hi-res audio streaming.
10. Who is the Marantz AV 30 best suited to?
    It is best for home theatre enthusiasts who want a premium separates-based cinema system with balanced outputs, advanced room correction, 8K HDMI, four independent subwoofer outputs, and Marantz sound quality.



What the Experts Say

• Marantz describes the AV 30 as an 11.4-channel balanced AV preamplifier for large media rooms and dedicated home theatre systems, with HDAM discrete circuitry and seven 8K-compatible HDMI inputs.
• What Hi-Fi? notes that the AV 30 includes an 11.4-channel preamp stage, dual-core SHARC DSP chipset, 32-bit DACs, HDMI 2.1 support, HEOS streaming, and Audyssey MultEQ XT32.
• Audioholics highlights the AV 30’s 11.4-channel processing, four subwoofer outputs, and support for advanced Dirac technologies including Dirac ART



Key Features

• Crafted in Shirakawa, Japan
• 11.4 Channels
• 7 HDMI Inputs plus eARC
• 8K and Dolby Atmos
• 3D Audio
• Powered by HEOS™



11.4-Channel AV Processing

The AV 30 supports up to 11.4 channels of processing. This makes it suitable for layouts such as 7.4.4, with four independent subwoofer outputs for better bass management in larger rooms.

Balanced XLR Outputs for All Channels

The AV 30 includes balanced XLR preamp outputs for all 11.4 channels, as well as RCA preamp outputs. Balanced XLR outputs are ideal for lower-noise connections to compatible power amplifiers, especially in larger racks or longer cable runs.

Four Independent Subwoofer Outputs

Four independent subwoofer outputs give installers and enthusiasts more control over bass response. This is especially useful in rooms where multiple subwoofers are used to smooth bass across several listening seats.

Dolby Atmos, DTS:X Pro and AURO-3D

The AV 30 supports major immersive audio formats, including Dolby Atmos, DTS:X Pro, AURO-3D, IMAX Enhanced, 360 Reality Audio, and MPEG-H. Therefore, it is ready for premium movie, concert, and immersive music playback.

7 HDMI Inputs with 8K Support

The AV 30 includes 7 HDMI inputs, all supporting 8K. It also has 3 HDMI outputs, including eARC. HDMI 2.1 support includes 8K/60Hz and 4K/120Hz pass-through, with up to 40Gbps bandwidth on supported paths.

Modern Video Features

The HDMI platform supports HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR, ALLM, VRR, QFT, eARC, HDMI standby pass-through, and 1080p/4K to 8K scaling. This makes the AV 30 suitable for modern TVs, projectors, game consoles, and media players.

Audyssey MultEQ XT32 Included

Audyssey MultEQ XT32 is included for room correction and speaker setup. The AV 30 also supports Audyssey Dynamic EQ, Dynamic Volume, and Audyssey LFC.

Optional Dirac Live Upgrade

Dirac Live upgradeability is supported. This gives users and installers an advanced calibration path for more precise room correction and system tuning.

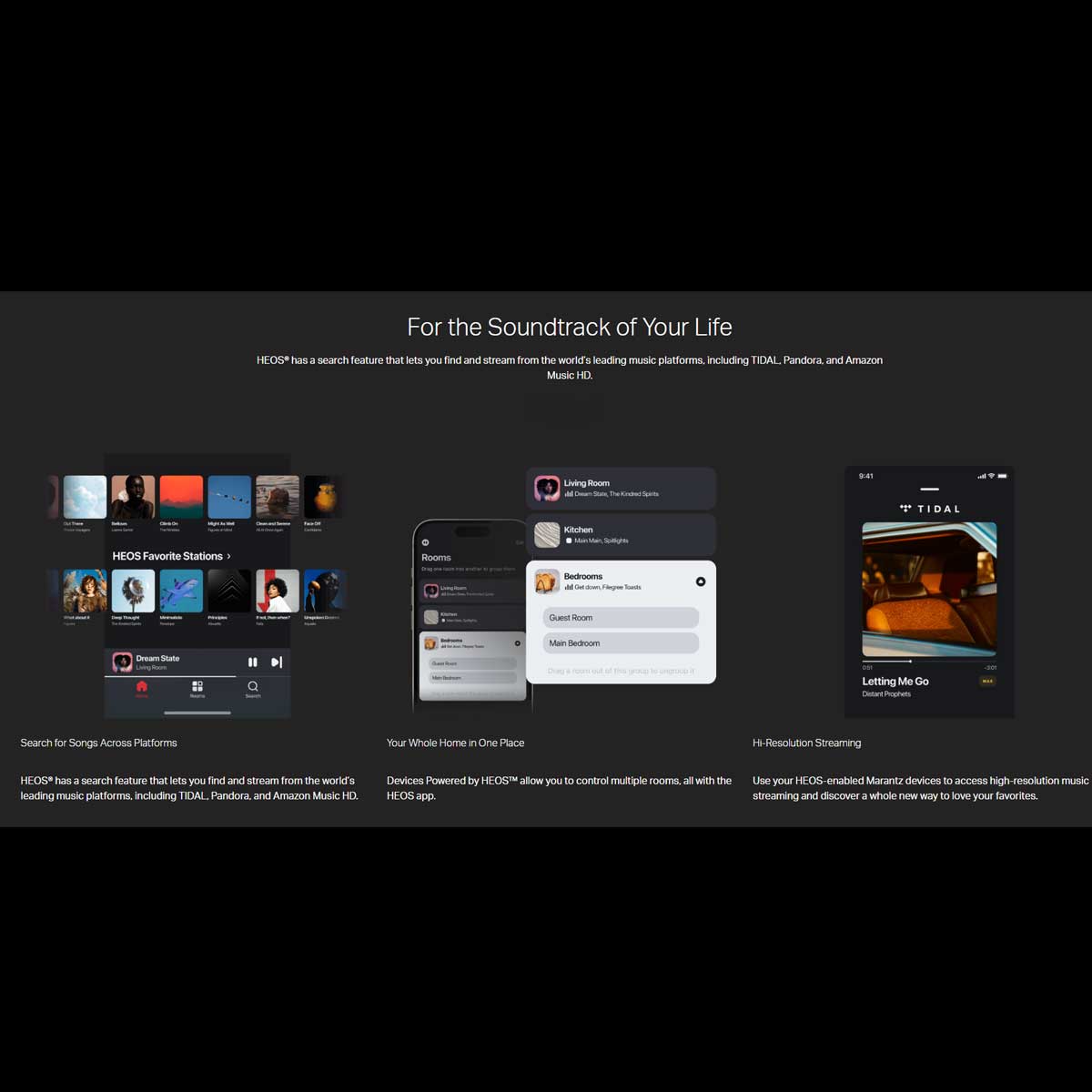

HEOS Built-In Streaming

HEOS built-in gives the AV 30 access to streaming and multi-room audio. Supported services and technologies include Spotify, Amazon Music, TIDAL, Deezer, SoundCloud, TuneIn, AirPlay 2, Bluetooth, and Roon Ready support.

Marantz HDAM-SA2 Circuitry

The AV 30 uses Marantz current feedback topology and HDAM-SA2 circuitry. This helps give the AV 30 the richer, more musical Marantz character while still delivering the precision needed for cinema use.

Premium Shirakawa Build

Marantz lists the AV 30 as crafted in Shirakawa, Japan. It also includes a copper-plated chassis, toroidal power transformer, metal front panel, backlit remote, and premium Marantz porthole OLED display.

---

Perfect System Match

The perfect system match is the Marantz AV 30 with the Marantz AMP 30 power amplifier. Together they create a clean, scalable separates-based system with balanced signal connection, dedicated processing, and dedicated amplification.

For larger systems, use the AV 30 with an AMP 20 or AMP 10, or combine multiple amplifiers to suit the speaker layout. This gives you the flexibility to power front, centre, surround, height, and subwoofer systems properly.

---

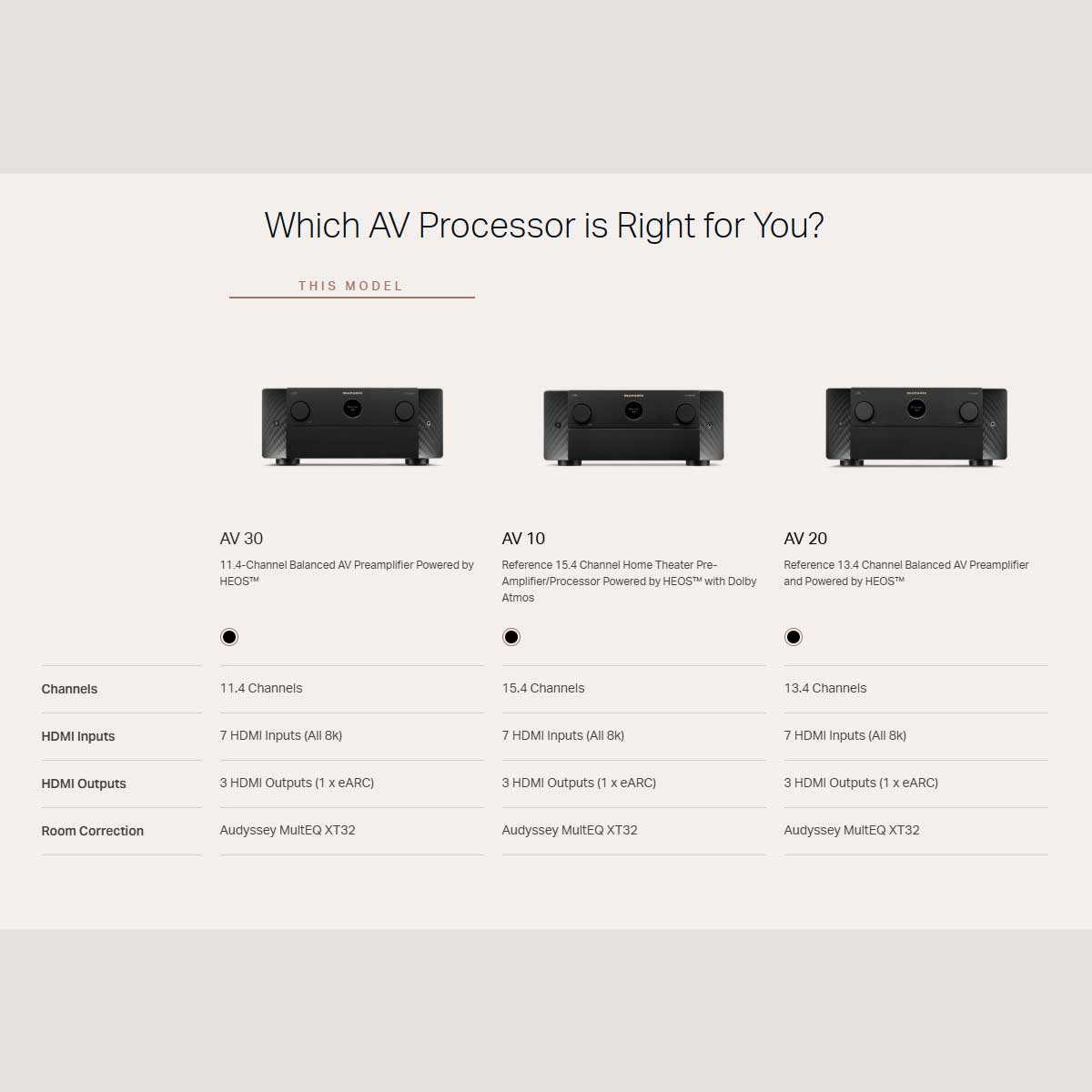

Product Comparison Snapshot

Model	Best For	Key Difference
Marantz CINEMA 30	High-end all-in-one AV receiver systems	Built-in amplification and processing in one chassis
Marantz AV 30	Premium 11.4-channel separates systems	11.4 processing, balanced outputs, four independent subs, no power amps
Marantz AV 20	Larger 13.4-channel balanced systems	More processing channels and higher-tier platform
Marantz AV 10	Flagship reference theatres	15.4-channel flagship processor with the most advanced Marantz AV platform



Specifications

Brand: Marantz

Model: AV 30

Product Type: 11.4-Channel Balanced AV Preamplifier / Processor

Processing Channels
11.4 channels

Immersive Audio Support
Dolby Atmos
Dolby TrueHD
Dolby Atmos Height Virtualization
Dolby Surround
DTS-HD Master Audio
DTS:X
DTS:X Pro
DTS Virtual:X
DTS Neural:X
IMAX Enhanced
AURO-3D
360 Reality Audio
MPEG-H

Room Correction
Audyssey MultEQ XT32
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Dirac Live upgradeable

Marantz Audio Technology
Current feedback topology
HDAM-SA2 modules
Clock jitter reducer
Pure Direct
Gold-plated RCA terminals

HDMI Inputs
7 x HDMI inputs

HDMI Outputs
3 x HDMI outputs
1 x eARC supported output

HDMI Video Support
8K/60Hz
4K/120Hz
HDCP 2.3
HDR
HLG
Dolby Vision
HDR10+
Dynamic HDR
ALLM
VRR
QFT
HDMI standby pass-through
1080p / 4K to 8K scaling

Analogue Inputs
6 x analogue inputs, including 1 x XLR

Phono Input
MM phono input

Digital Inputs
2 x optical
2 x coaxial

Video Inputs
2 x composite inputs
1 x component input

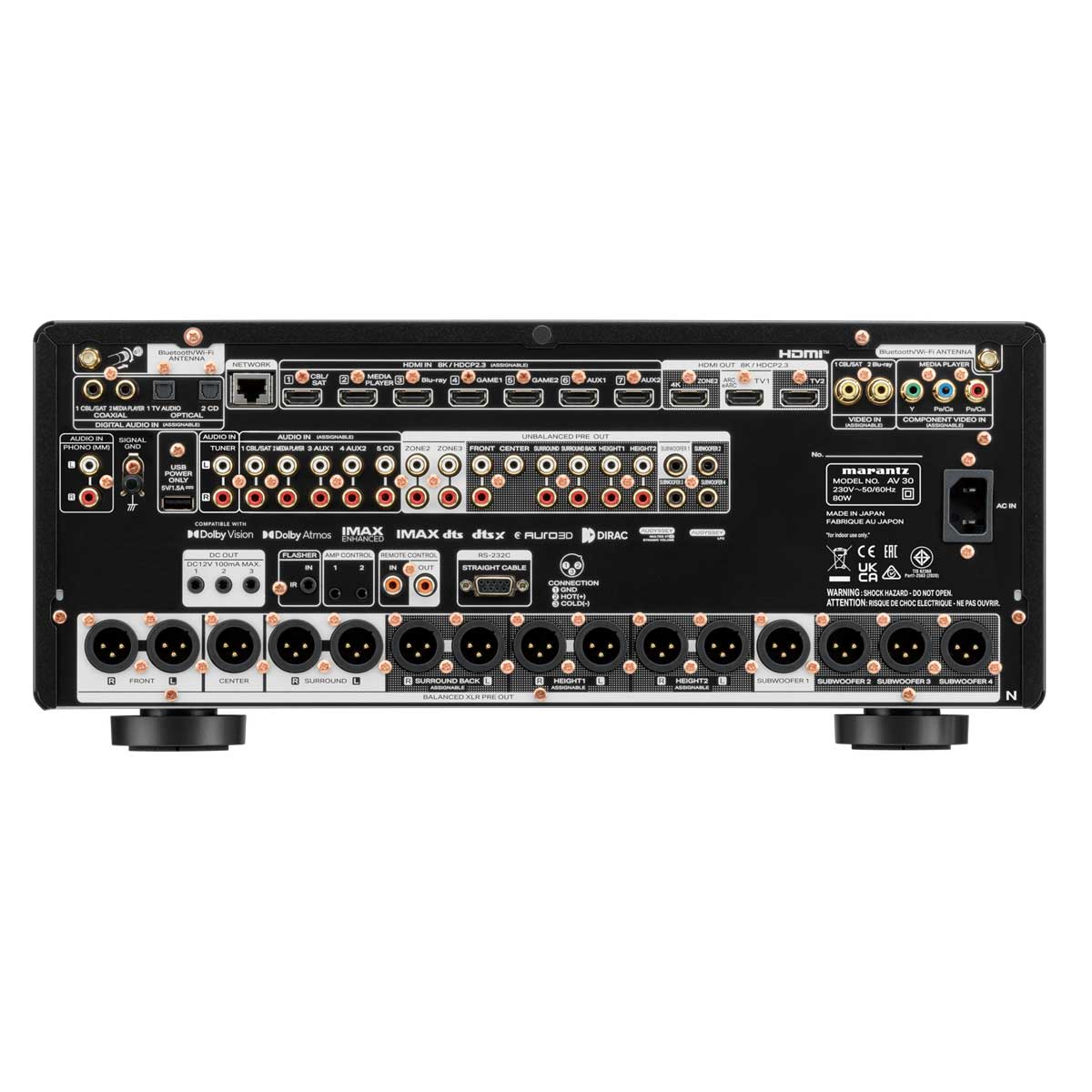

Preamp Outputs
11.4-channel RCA preamp outputs
11.4-channel XLR balanced preamp outputs

Subwoofer Outputs
4 independent subwoofer outputs

Multi-Room / Zone Support
3 zones
Zone HDMI output
Zone analogue pre-out

Network and Streaming
Wi-Fi
Bluetooth
Ethernet
HEOS multi-room and streaming
AirPlay 2
Spotify
Amazon Music
TIDAL
Deezer
Napster
SoundCloud
TuneIn
Roon Ready

Hi-Resolution Audio Streaming
FLAC HD up to 192kHz / 24-bit
ALAC up to 192kHz / 24-bit
WAV up to 192kHz / 24-bit
DSD up to 5.6MHz
Gapless playback for FLAC, ALAC, WAV, and DSD

USB
Front USB input
Rear USB power supply

Control and Integration
IP control
RS232 control
Web control
App control
IR flasher input
Marantz Remote Bus
3 x DC trigger outputs
HDMI diagnostics

Tuner
AM/FM tuner

Display
2-line FLD
Porthole OLED display

GUI
Modern HD GUI
9 GUI languages
Setup Assistant
Smart Select

Remote Control
RC053SR backlit remote included

Chassis
Metal front panel
Copper-plated chassis
Toroidal power transformer

Power Consumption
80W

Standby Consumption
0.2W

CEC Standby Consumption
0.5W

Network Standby Consumption
2.0W

Dimensions
With antennas horizontal: 442mm (W) x 414mm (D) x 190mm (H)
With antennas vertical: 442mm (W) x 414mm (D) x 254mm (H)
Without antennas: 442mm (W) x 396mm (D) x 190mm (H)

Weight
Approx. 11.1kg

Finish
Black

Included Accessories
Main unit
Remote control
Batteries
Wire labels
Quick start guide
Audyssey microphone
Cardboard microphone stand
2 external detachable antennas
AC cord

Rapallo Product Data

MPN: AV30

SKU: MARANTZ-AV30

EAN / UPC / GTIN: 747192143817
