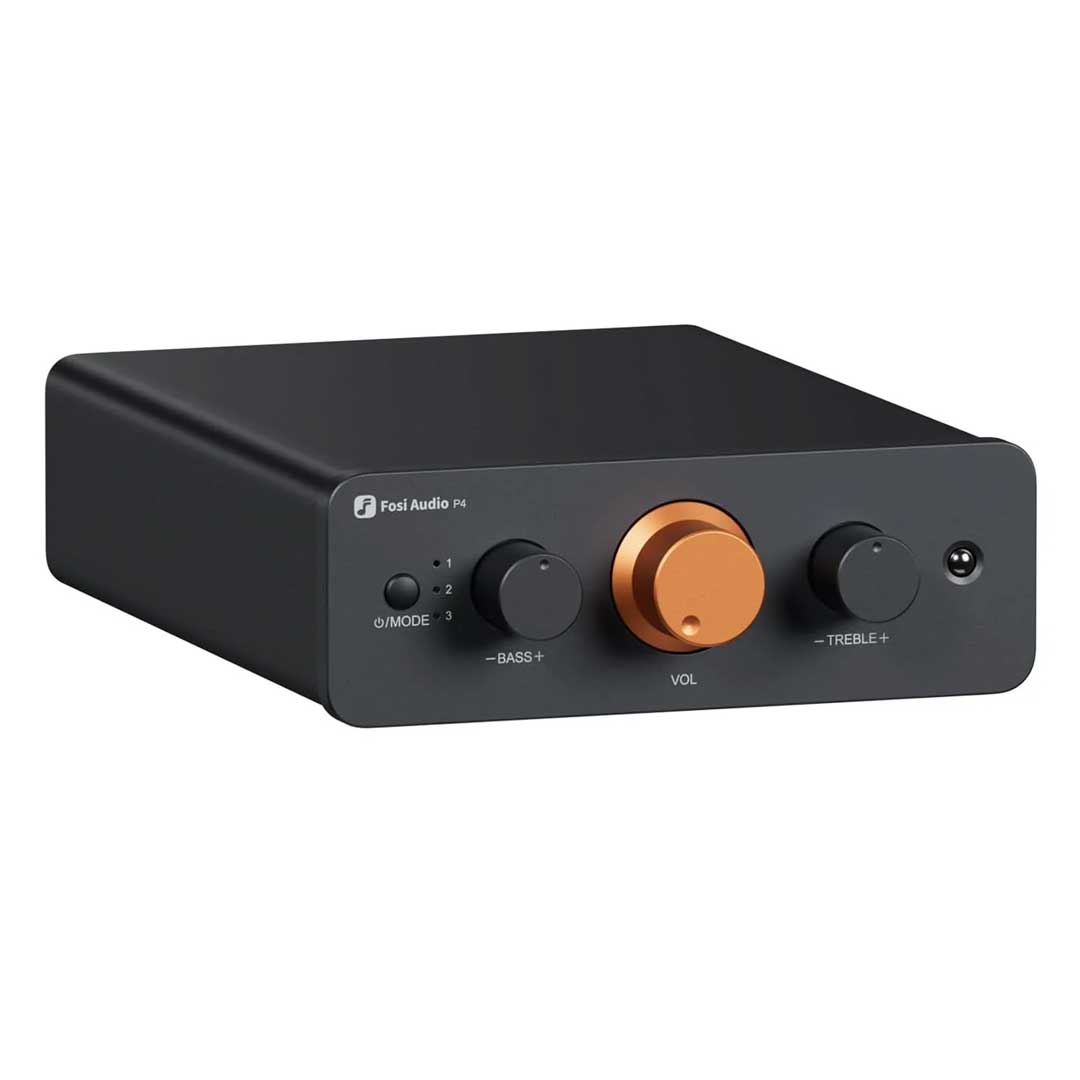

Fosi Audio P4 Mini Preamplifier
The Fosi Audio P4 Mini Preamplifier is equipped with triple inputs, tone control, and remote control for a convenient and customizable audio experience.
View Product Manuals >> View Fosi Audio Products >>
Features
- Triple RCA Inputs
- Bass, Treble, and Gain Control
- Motorized Pot for Smooth Adjustment
- Bypass Function for Pure Signal Path
- Op-Amp Rolling: SS3602, MUSES02, OPA2134PA
- 3 x RCA Inputs
- ≥ 110dB SNR
- ≤ 0.003% THD+N
- ≥105dBS INAD
Another Masterpiece Driven by Voice of Customers
The P4 is a mini preamp self-developed by Fosi Audio based on extensive feedback from users worldwide after the launch of the V3 stereo amp.
- Input: RCA x3; Output: RCA, Pre-Out
- SNR≥ 110dB; THD+N≤ 0.003%
- Frequency Response: 20Hz-20kHz(±0.1dB)
Mini Control Hub
The P4 supports up to 3 RCA inputs, allowing easy connection to CD players, streamers, DACs, cassette decks, and turntables with built-in phono preamp. Switch between sources with a click for seamless audio control.

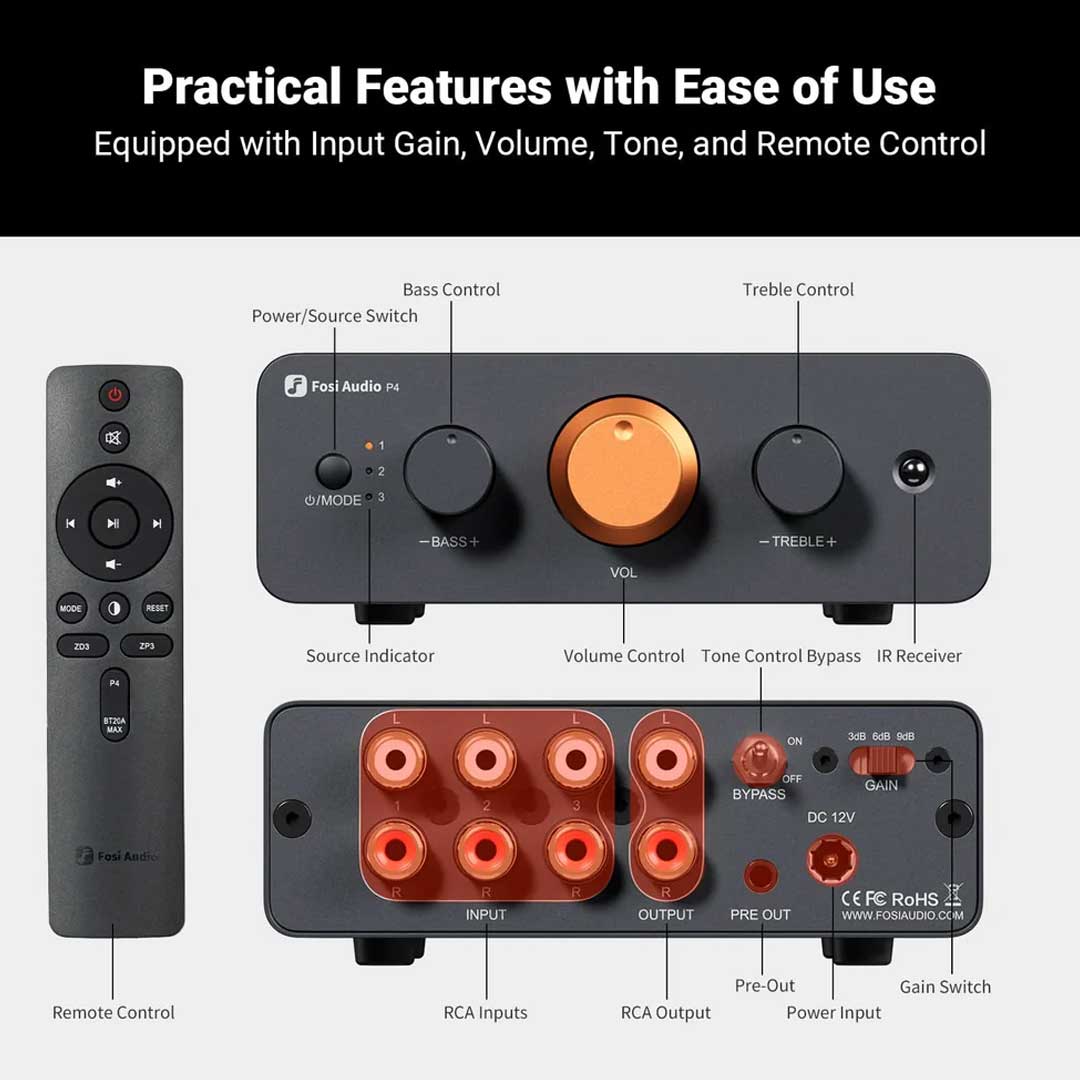

Practical and User-Friendly
Equipped with volume control, bass and treble adjustment with bypass function, three-level gain control, and a remote. The preamplifier offers convenient audio setup and optimization, making every listening session effortless.

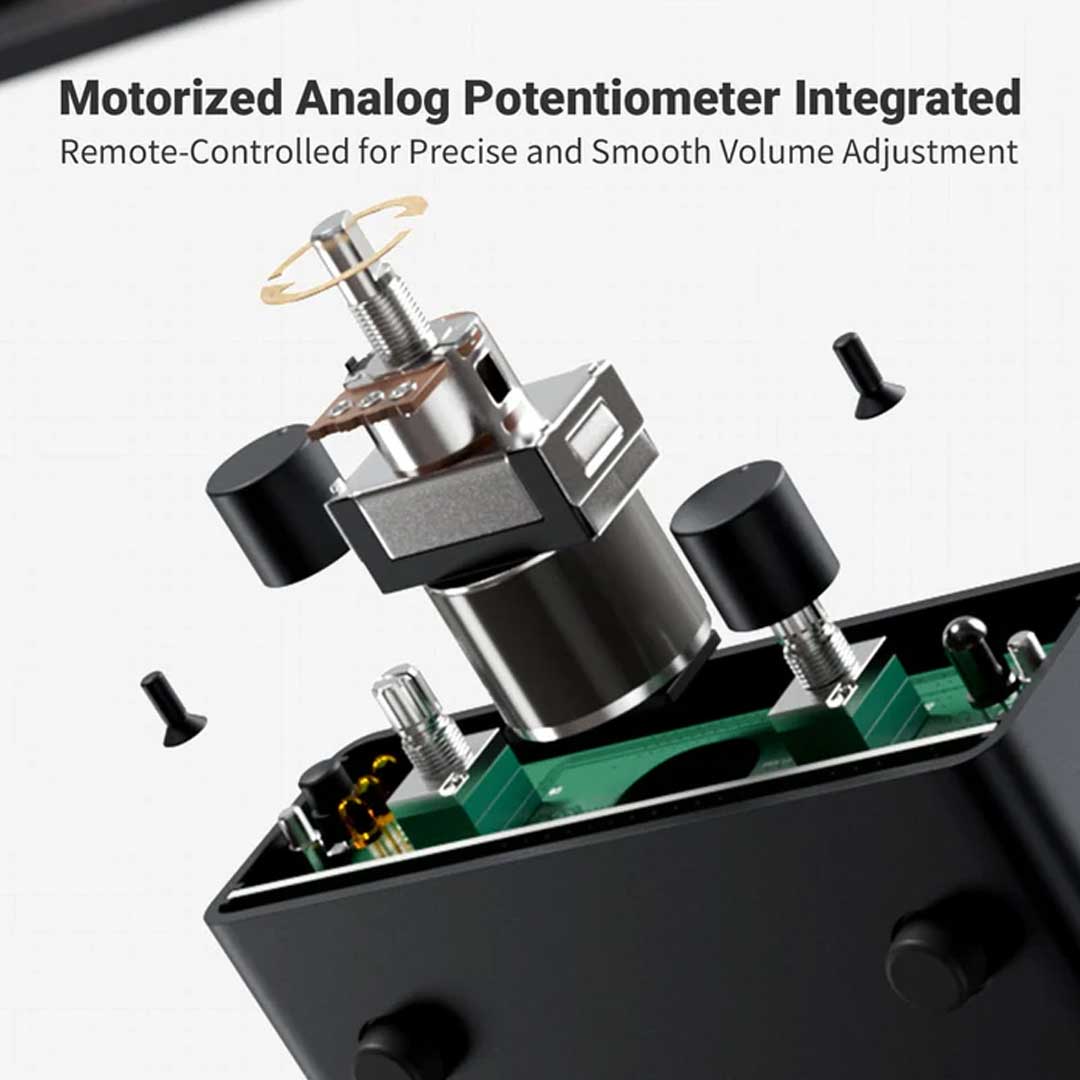

Motorized Potentiometer
Featuring a high-precision motorized analog pot, the P4 delivers smooth volume adjustment, reduced noise, and minimal distortion for a purer and more refined sound experience.

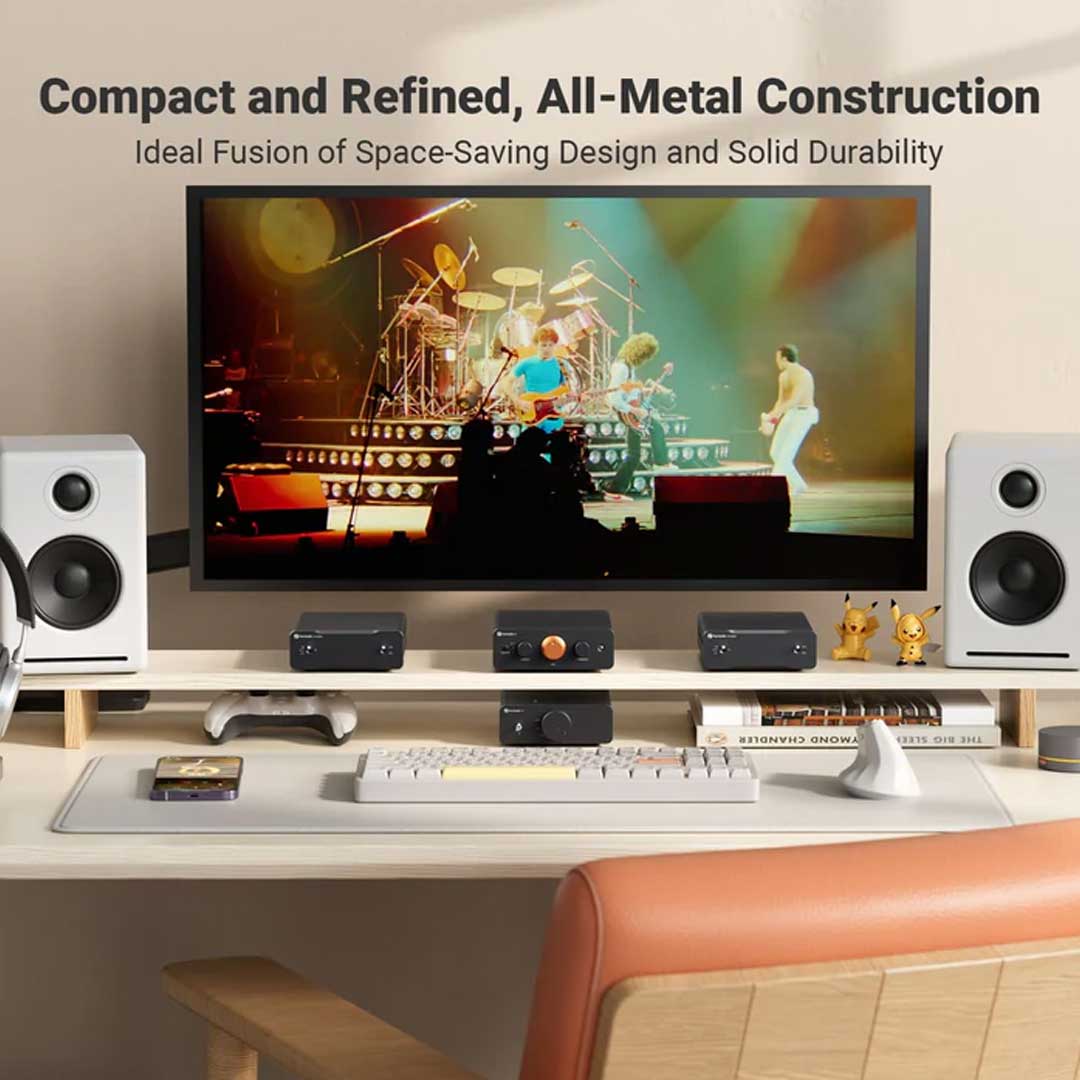

Compact and Solid
The P4 stereo preamp features a sleek, minimalist design that saves space and provides robust resistance to electromagnetic interference, ensuring reliable performance over time.

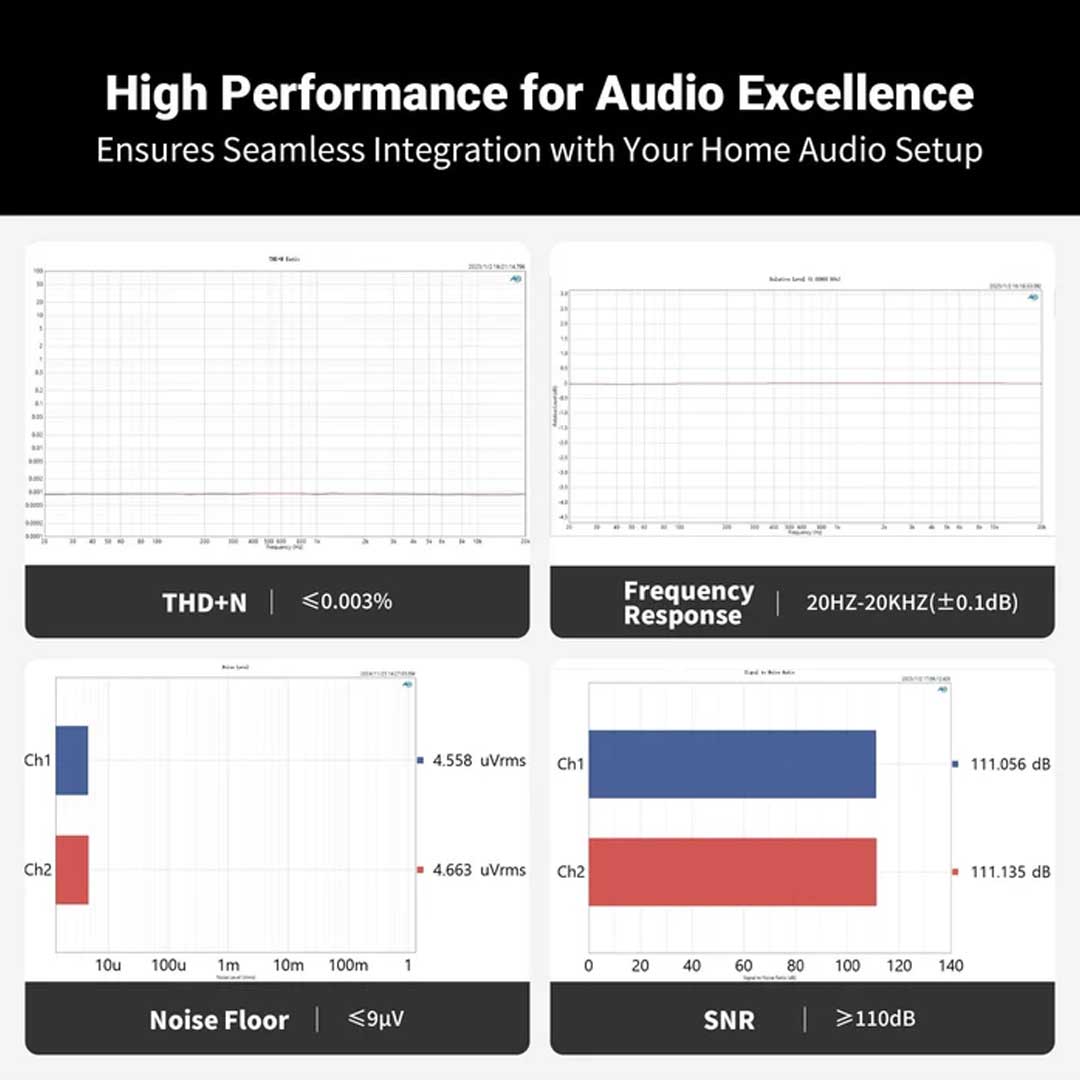

Exceptional Performance
With a low noise floor, high signal-to-noise ratio, and extremely low distortion, the P4 pre-amplifier delivers pristine audio, ensuring accurate sound reproduction and enhancing the listening experience for audiophiles
FAQs

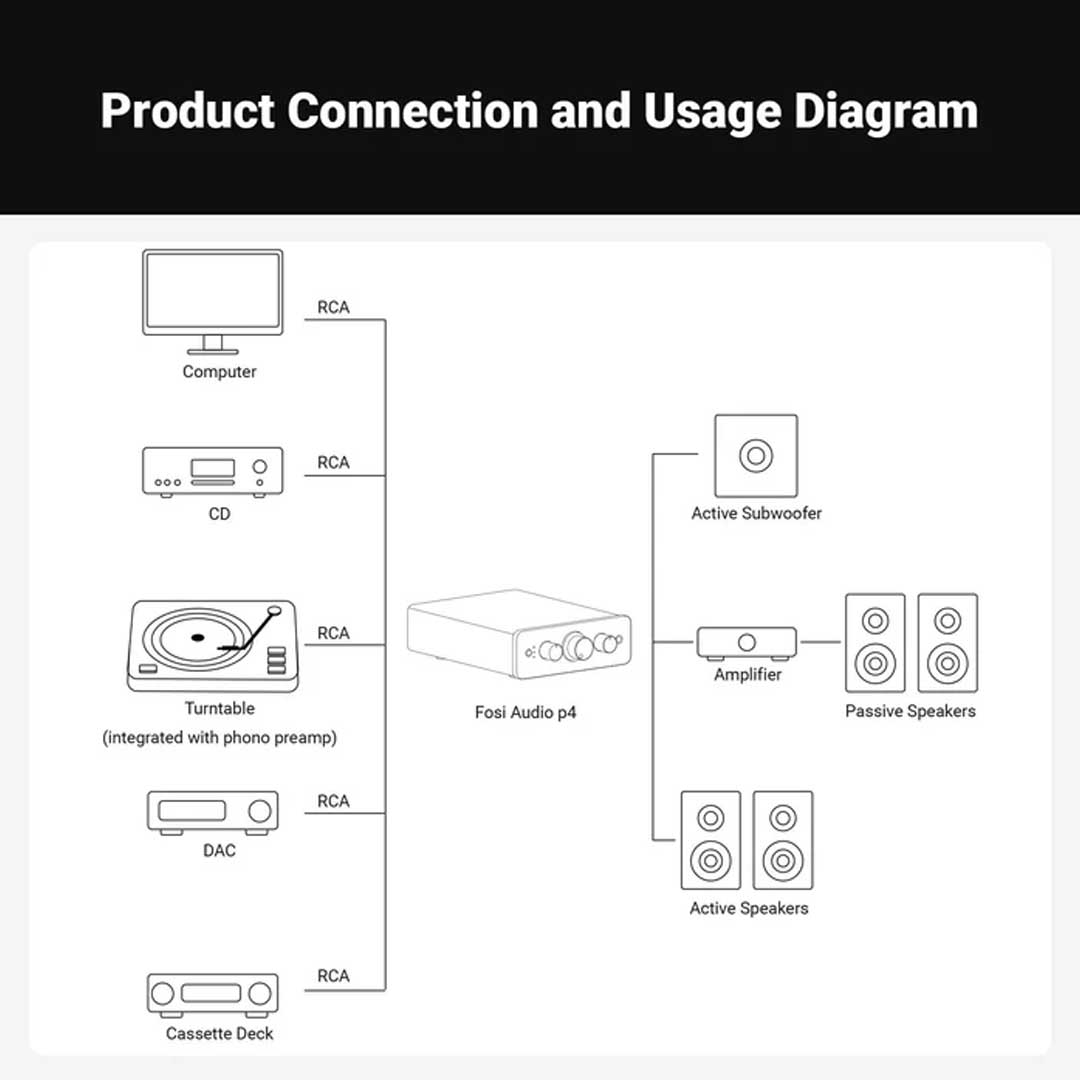

- How do I integrate P4 into a audio system? First, connect P4 to your audio sources via RCA cables, then connect P4 to an amplifier via RCA cables, and lastly, use speaker cables to connect the amplifier to the passive speakers.
- What is the function of the Bypass switch? This is the bypass function for turning the tone control on and off. Sliding it up bypasses the bass and treble adjustments while sliding it down enables the bass and treble controls. The bypass switch won’t function on the volume control.
- What are the benefits of the high-precision motorized analog potentiometer in the P4? It ensures smooth, precise volume control, and enhances usability while reducing noise and distortion. When adjusting the volume with the remote, the potentiometer‘s motor syncs with the physical knob, providing a seamless and intuitive experience.
- What can the pre-out port used for? Allows for easy connection to external powered subwoofers or additional amplification. It ensures seamless integration with your audio system, enabling enhanced bass response or driving additional speakers for a more immersive listening experience.

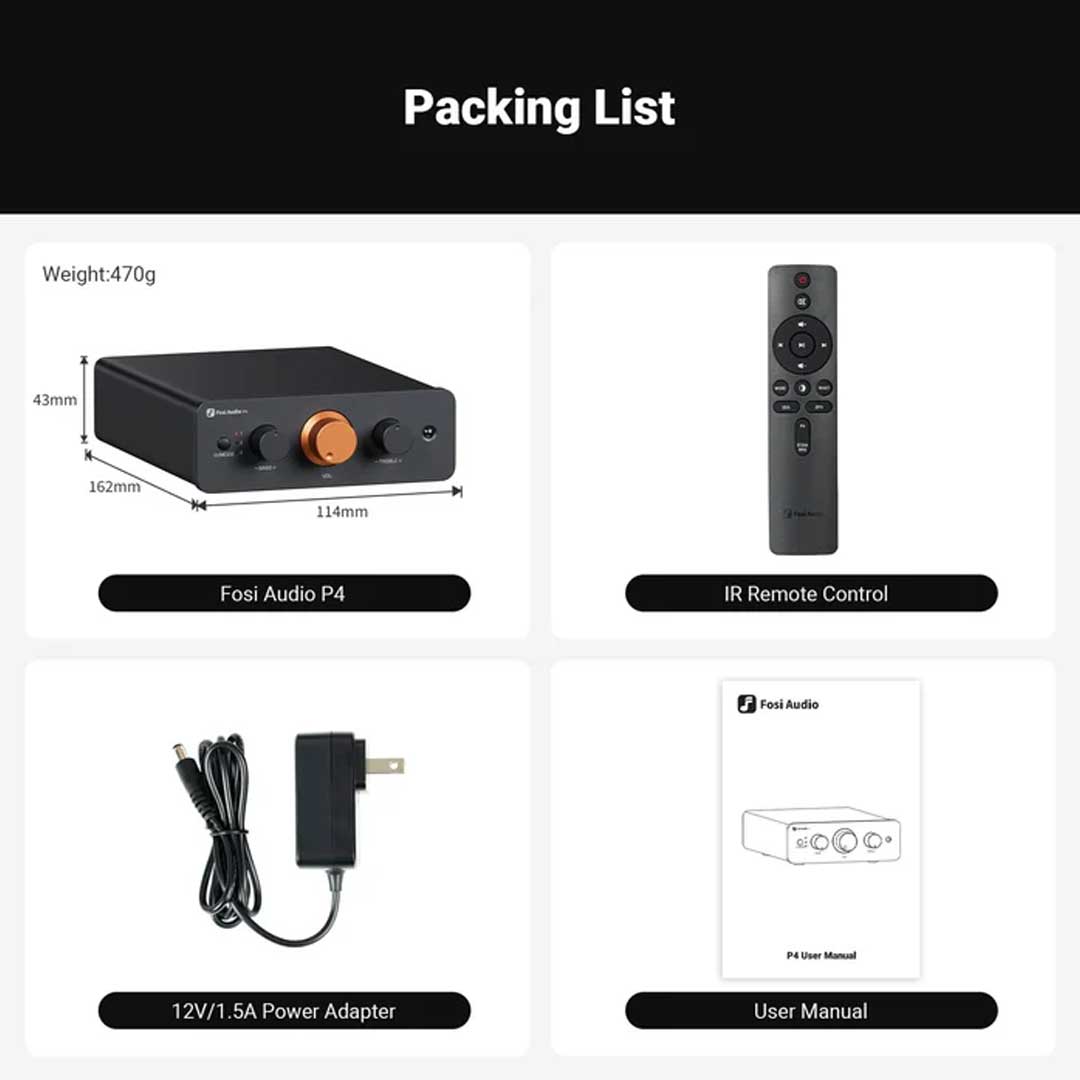

What‘s in the box
- Fosi Audio P4 Mini Preamplifier x 1
- 12V/1.5A Power Supply x 1
- User’s Manual x 1
Specifications
- Channel: 2.0
- Input Mode: RCA*3
- Output Mode: RCA, Pre-out
- SNR: ≥ 110dB
- Dynamic Range: ≥ 110dB
- THD+N: ≤ 0.003%
- Crosstalk: ≥ 105dB
- Noise Floor: ≤ 9μV
- Tone Adjustment Gain: ±12dB
- Frequency Response: 20Hz-20kHz(±0.1dB)
- Power Supply: DC 12V/1.5A
