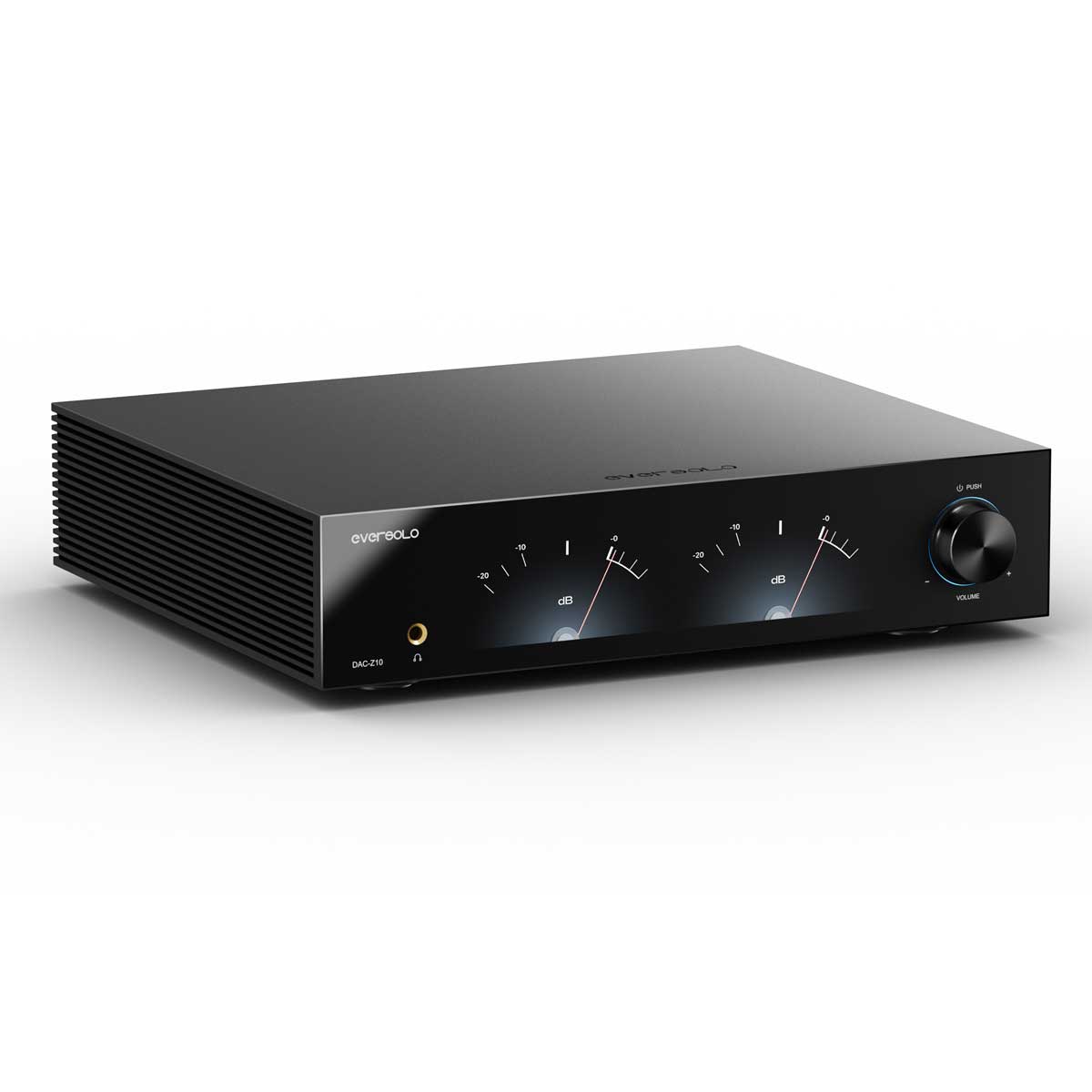

Eversolo DAC-Z10 Hi-Res Audio Converter

Description

Eversolo DAC-Z10 Hi-Res Audio Converter

The Eversolo DAC-Z10 Hi-Res Audio Converter is more than just a DAC, the Z10 functions as a complete digital hub, integrating preamplifier capabilities, headphone amplification, and extensive connectivity into one premium chassis.

This is not just about converting digital to analogue, it is about control, refinement, and system integration. The dual-mono design and fully isolated architecture mean you get a noticeably quieter background, better separation, and a more stable soundstage.

In listening, the Z10 is incredibly revealing. It pulls out detail effortlessly, but it does not sound harsh or clinical. Instead, it maintains a natural balance that works beautifully across different genres. It is the kind of DAC that elevates everything upstream, so pairing matters.

We also like how versatile it is. You can run it as a DAC, a preamp, or even a headphone system. That makes it a very strong centrepiece for both traditional hi-fi and modern hybrid systems.

For customers building a serious digital front end, this is a long-term investment piece that will not be the limiting factor in your system.





View Owners Manual >>

View Eversolo >>



Frequently Asked Questions

1. Is the Eversolo DAC-Z10 just a DAC or more than that?
   It is more than a DAC. The DAC-Z10 also functions as a full preamplifier and headphone amplifier, making it a central hub for both digital and analogue systems.
2. Can the DAC-Z10 replace a preamp in my system?
   Yes, thanks to its R2R volume control and balanced outputs, it can be connected directly to a power amplifier or active speakers without needing a separate preamp.
3. What makes the DAC-Z10 different from cheaper DACs?
   It uses a dual-mono DAC design, fully isolated circuitry, and multiple linear power supplies. These reduce noise and improve detail, soundstage, and overall realism.
4. Does the DAC-Z10 support high-resolution audio formats?
   Yes, it supports PCM up to 32-bit/768kHz and native DSD512, ensuring compatibility with the highest quality digital audio formats.
5. Can I connect my TV to the DAC-Z10?
   Yes, it includes HDMI ARC/eARC input, allowing you to connect your TV and significantly improve audio quality for movies and streaming content.



Ideal For

• High-end digital systems
• Audiophiles seeking maximum detail and resolution
• DAC + preamp replacement setups
• Hybrid hi-fi and home theatre systems

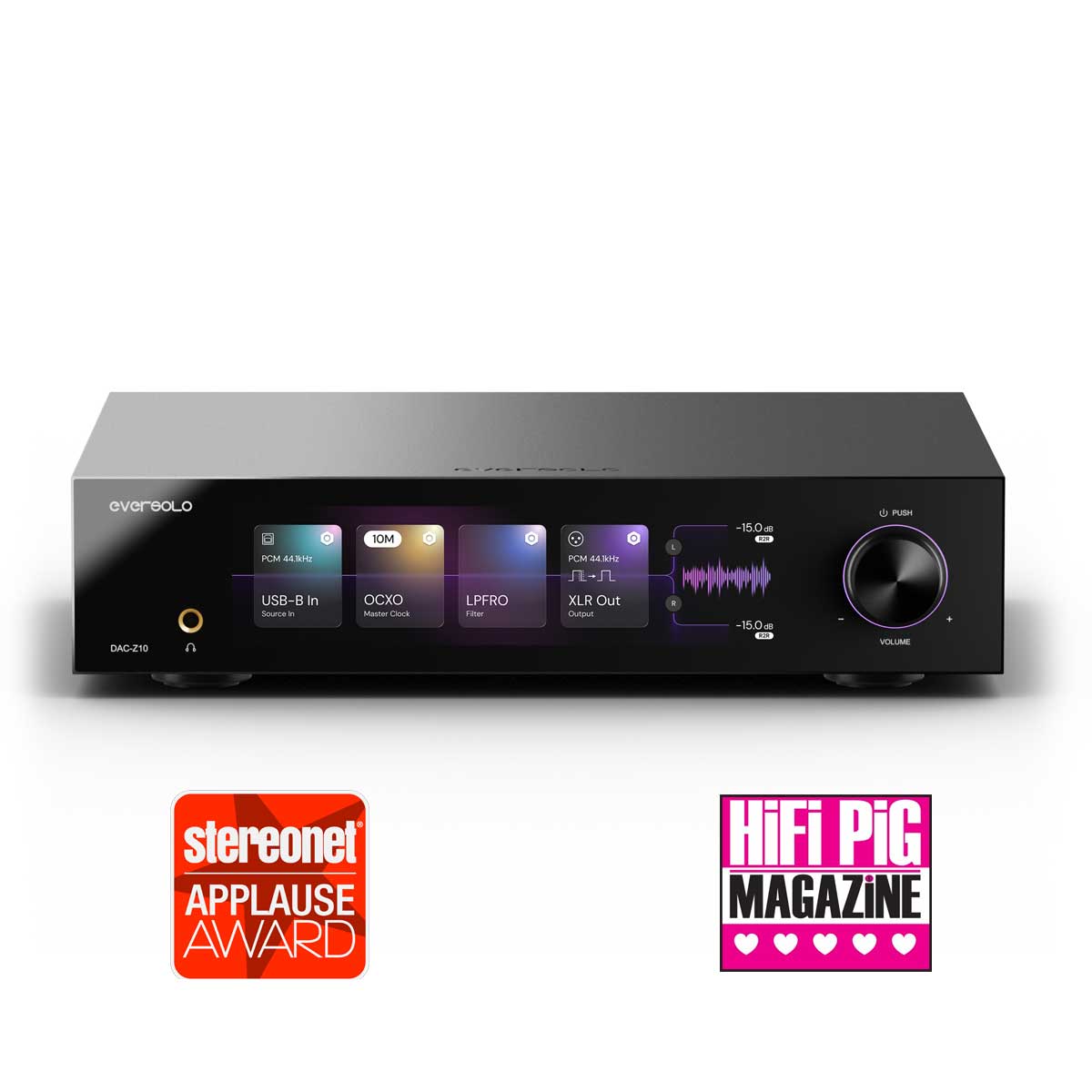

What the Experts Say

• “A flagship DAC that sets a new benchmark in digital-to-analogue conversion.”
• “Highly detailed, dynamic, and tonally neutral… exceptional performance.”
• “A versatile centrepiece combining DAC, preamp, and headphone amplification.”

Read the Reviews >>



Key Features

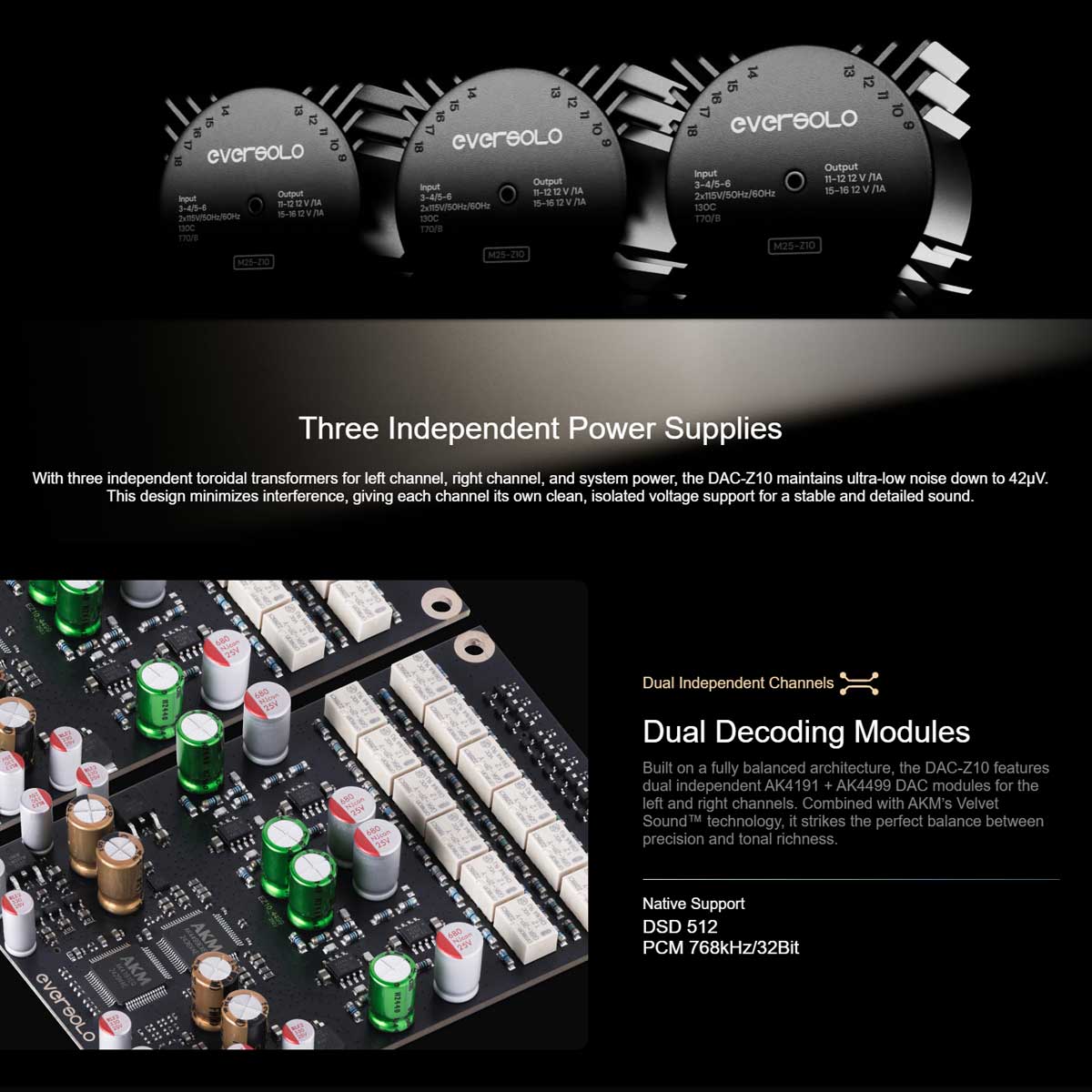

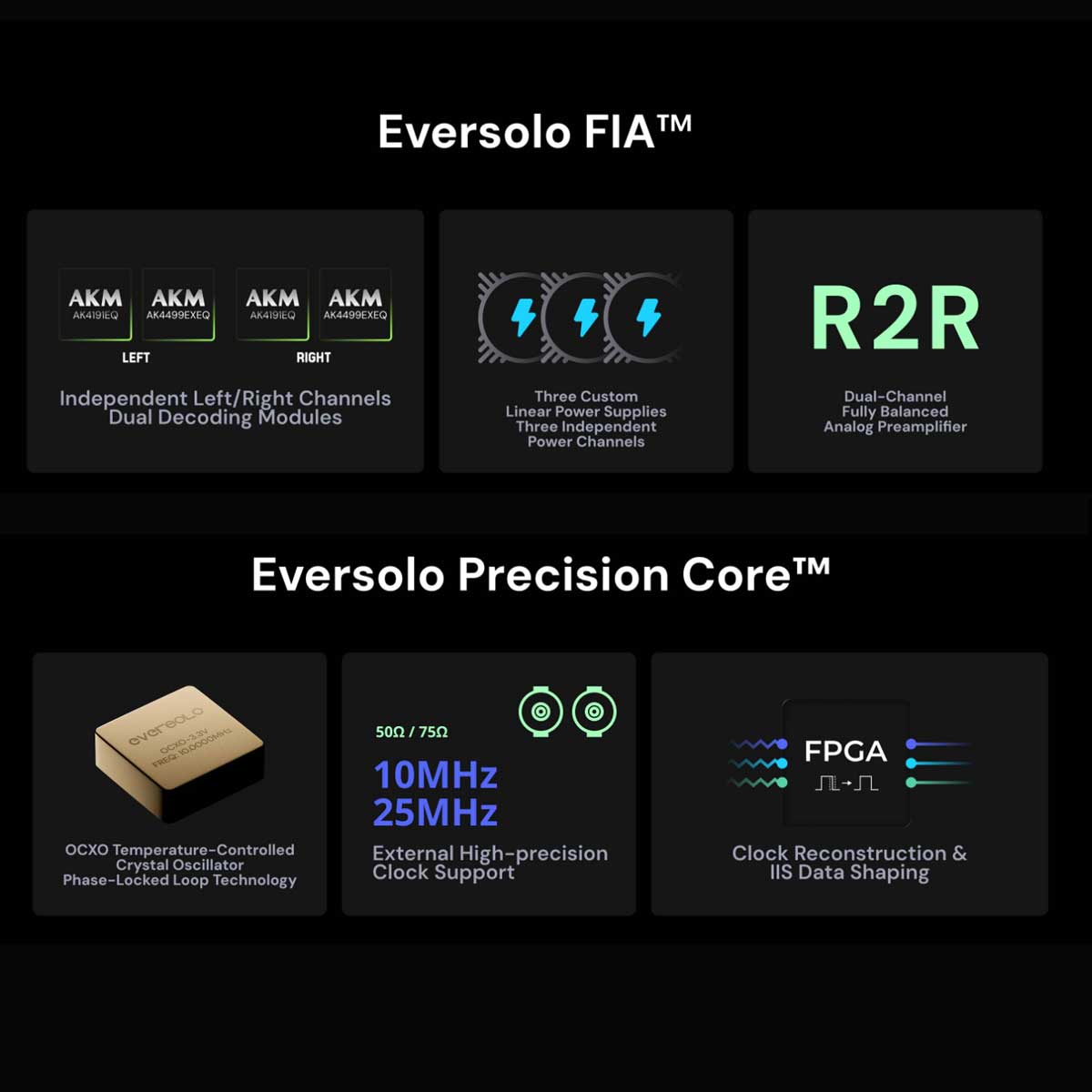

Dual AKM Flagship DAC Architecture

Utilises AK4191 + AK4499 chips in a dual-mono configuration for exceptional resolution, dynamic range, and channel separation.

Fully Isolated Architecture

Separates digital and analogue circuits with dedicated power supplies to eliminate noise and interference for cleaner sound.

Ultra-High Resolution Support

Supports PCM up to 32-bit / 768kHz and native DSD512 for true high-resolution playback.

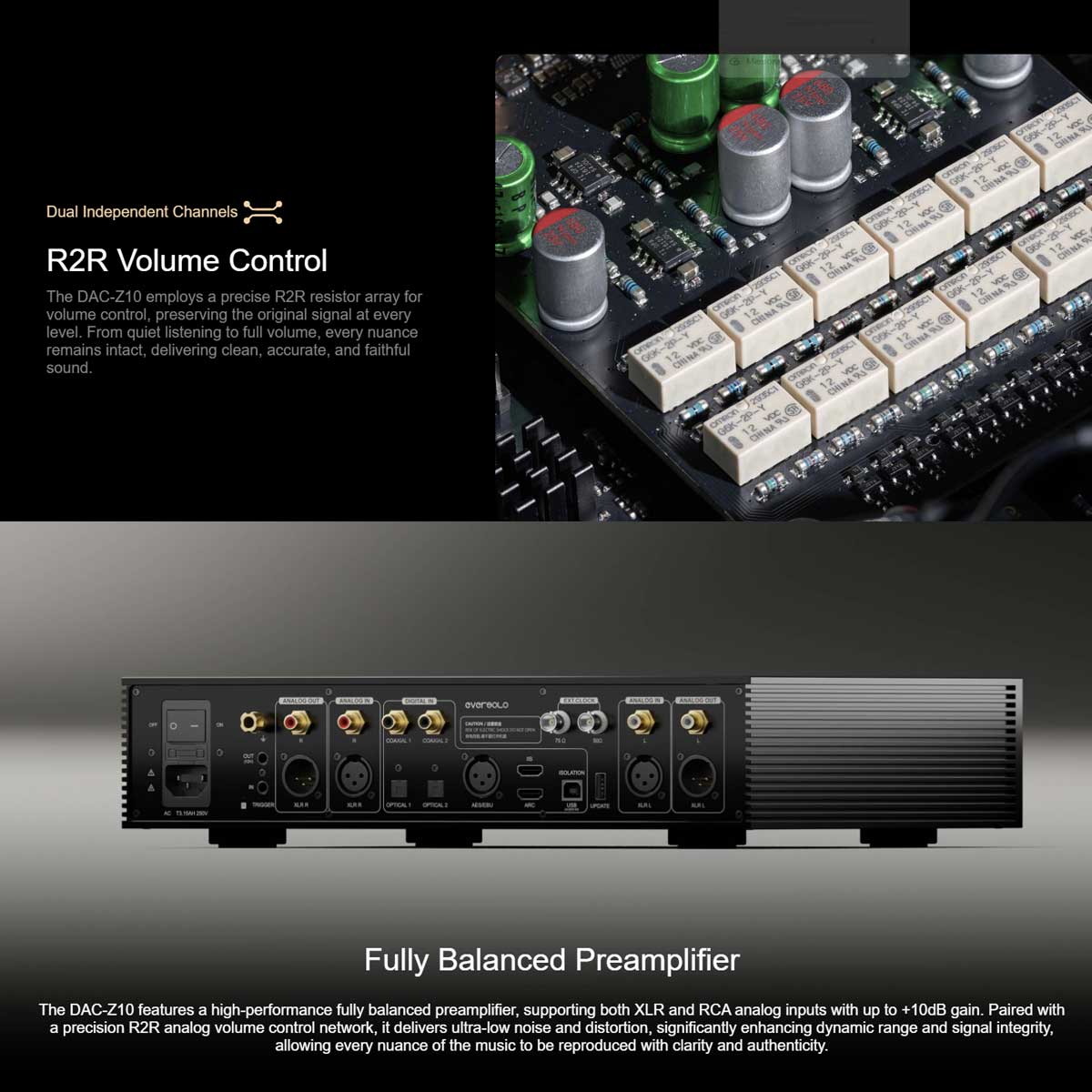

Precision R2R Volume Control

High-quality resistor ladder volume system ensures accurate signal control without degrading sound quality.

Built-In Headphone Amplifier

Integrated headphone stage delivers up to 1W output, suitable for a wide range of headphones.

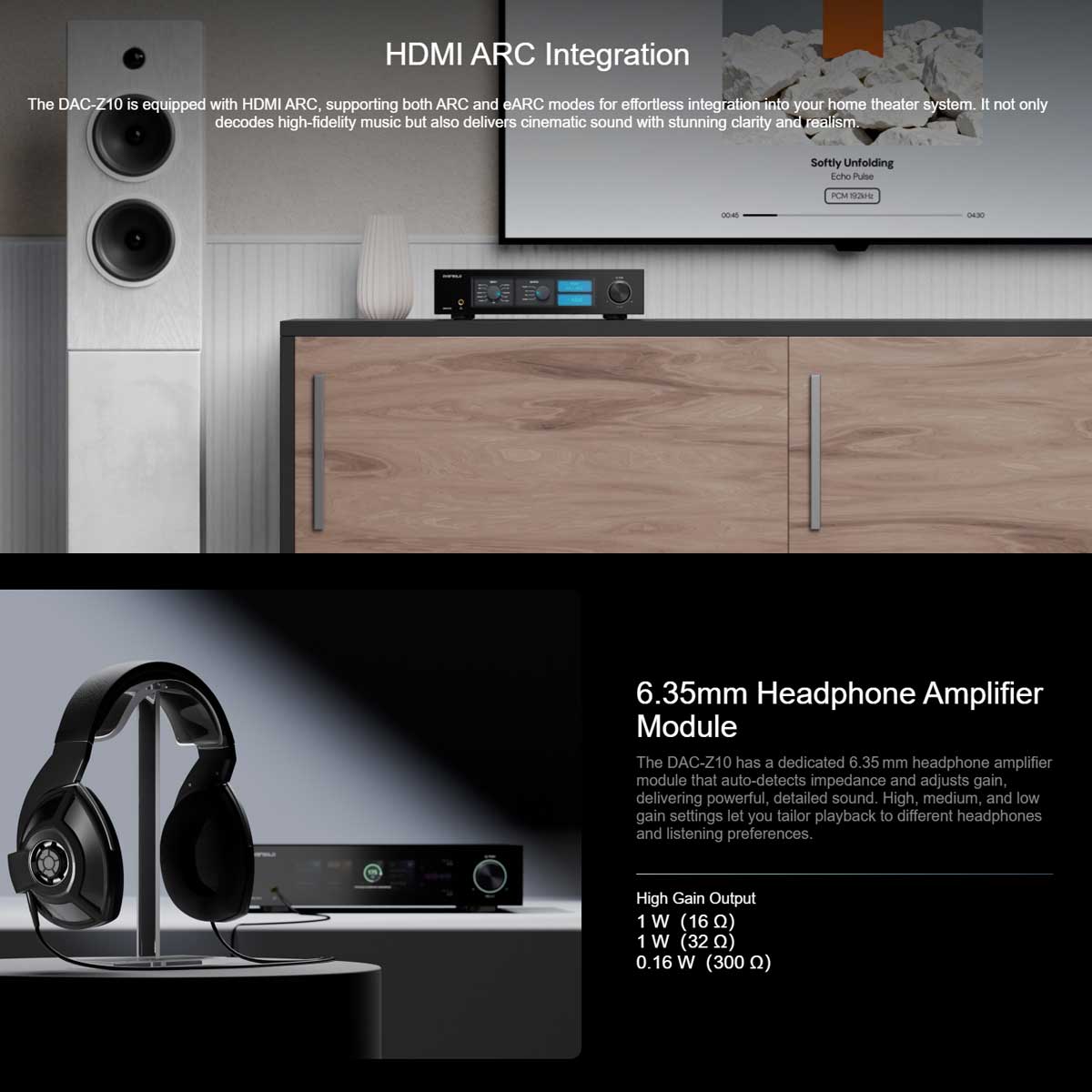

HDMI ARC / eARC Integration

Allows direct connection to TVs, making it suitable for both hi-fi and home theatre setups.

Advanced Clocking & FPGA Processing

FPGA-based signal processing and precision clocking reduce jitter and improve timing accuracy.

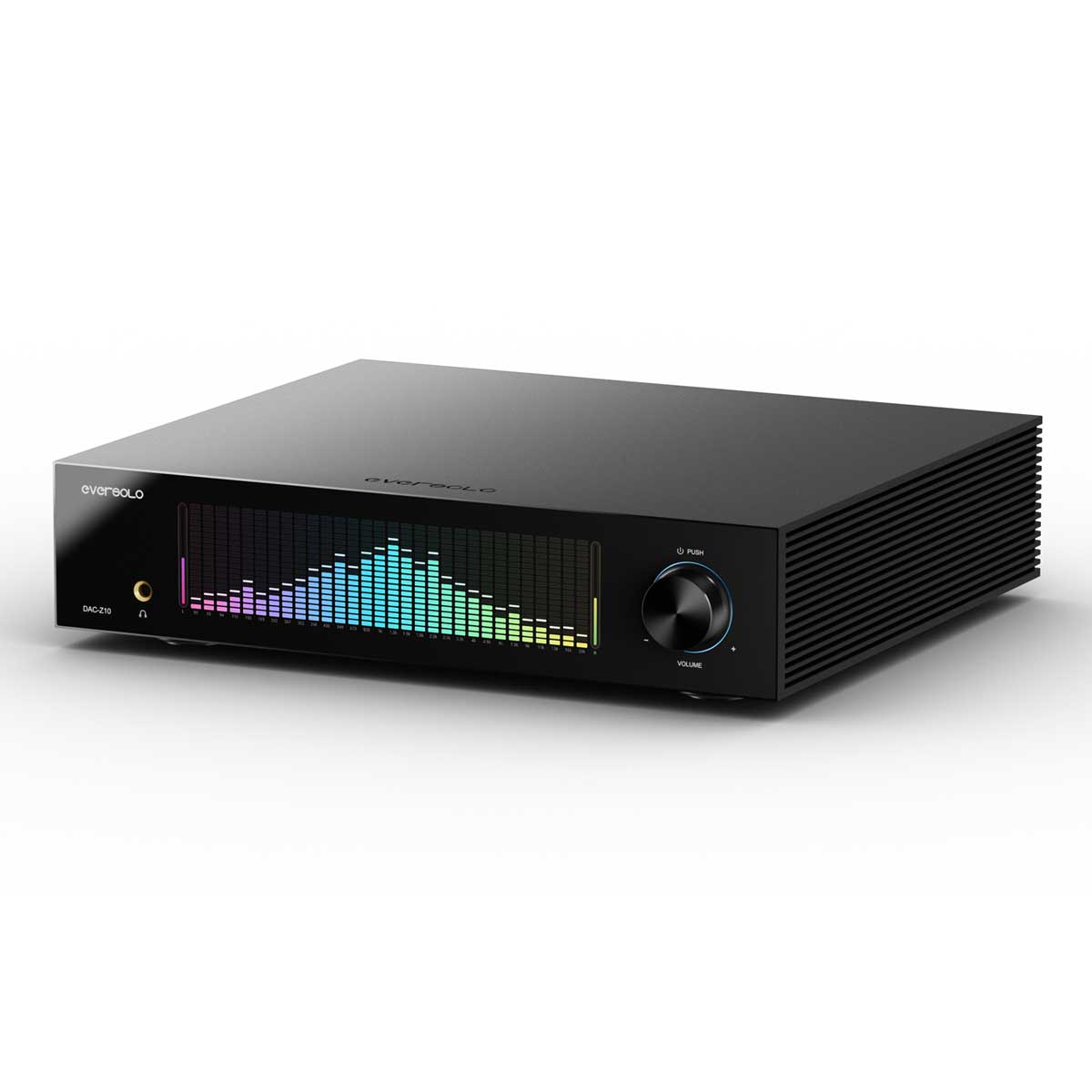

Large 8.8-inch Touchscreen

High-resolution display with VU meters and intuitive interface for system control and monitoring.

Suggested System Pairing

• Source: Eversolo T8 / CD transport / computer audio
• Amplifier: Power amplifier (via preamp output) or integrated amp
• Speakers: Paradigm Founder, ELAC Vela, Klipsch Heritage



Specifications

Brand: Eversolo
Model: DAC-Z10
Product Type: Digital-to-Analogue Converter / Preamp / Headphone Amplifier

Display
8.8″ IPS

Chassis Material
Aluminium alloy

Main Processor
DCP8568

DAC
Left Channel: AK4191+AK4499
Right Channel: AK4191+AK4499

Audio Processor
Multi-core USB audio processor

OPA Chip
OPA1612

Power
Triple ultra-low noise linear power supplies

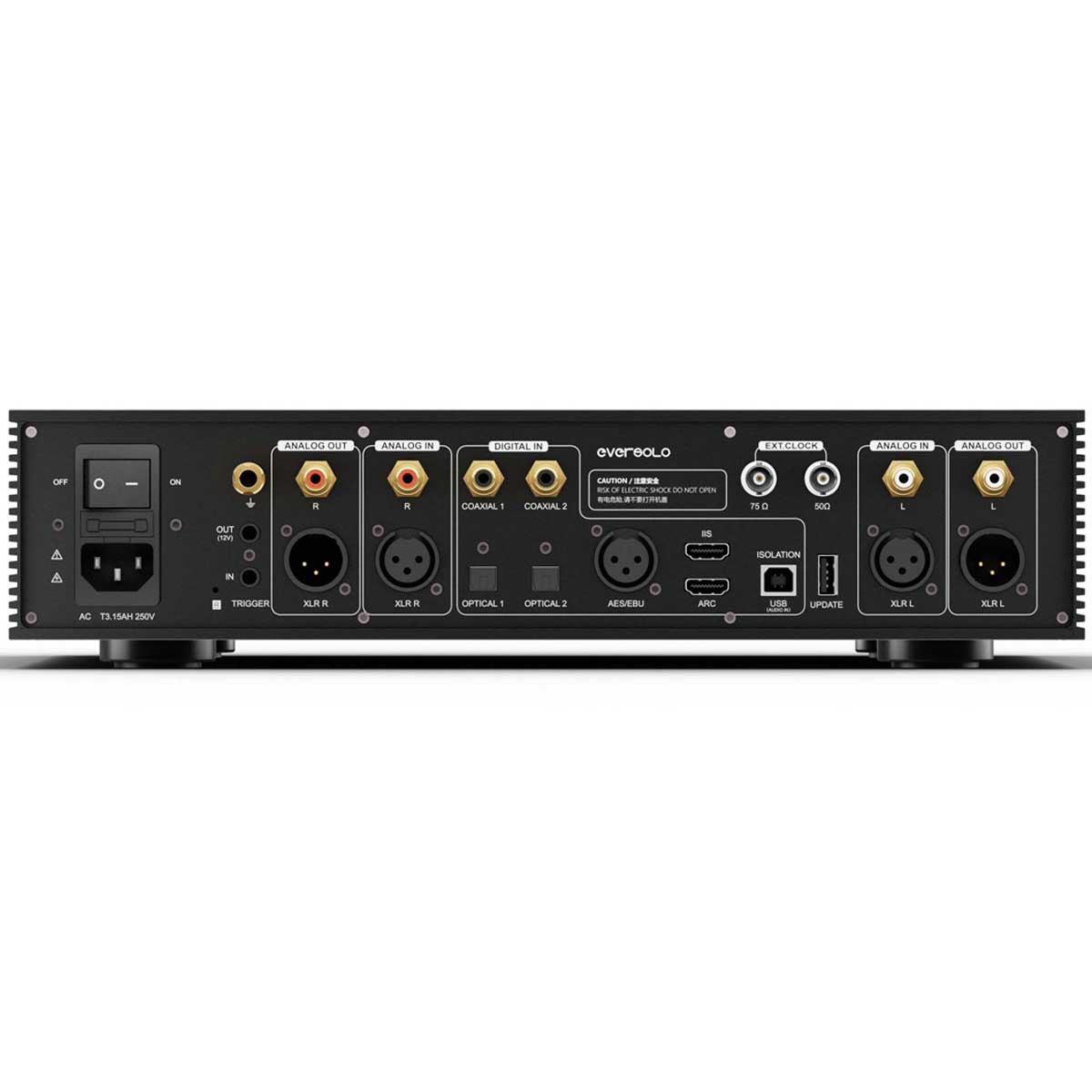

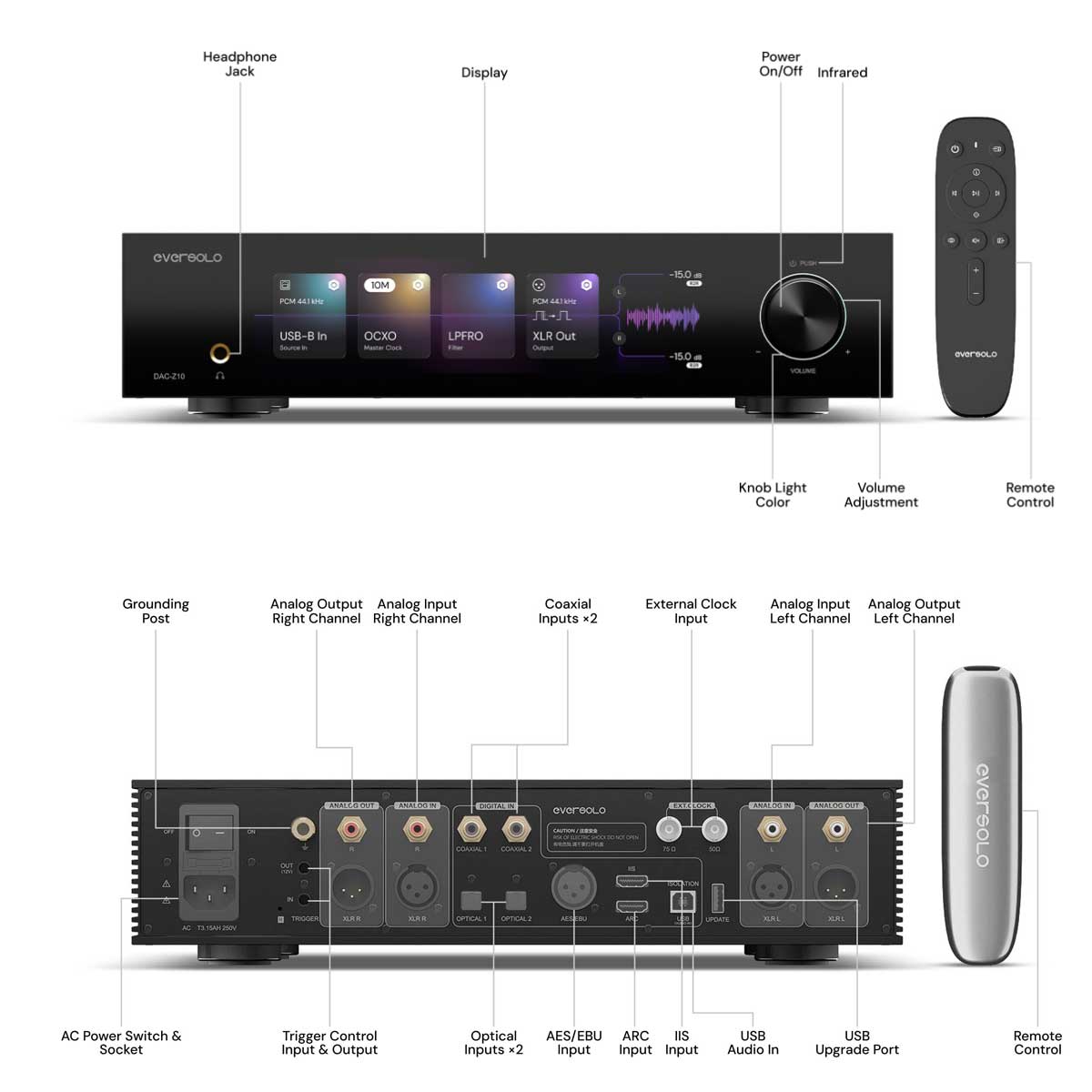

Audio Inputs and Outputs

Bluetooth Audio Input
Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols

USB-B Audio Input
Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit

IIS Input
Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit

AES/EBU Input
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Optical Audio Inputs *2
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Coaxial Audio Inputs *2
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

ARC Input
Up to Stereo PCM 192KHz/24Bit

Analog Audio Inputs
XLR (Balanced), RCA

Analog Audio Outputs
Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended

External Clock Input
Supports 10M/25M clock inputs with 50Ω or 75Ω impedance

Recommended Headphone Impedance
16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)

Audio Characteristics

XLR Output Audio Characteristics
Output Level (Vrms): 5Vrms @ 0dBFS
THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)
Noise @ No-wt: <1.2uVrms
SNR @ A-wt: 130dB
Frequency Response: 20Hz–20kHz (±0.1dB)
Crosstalk: -130dB
DNR @ A-wt: 130dB

RCA Output Audio Characteristics
Output Level (Vrms): 2.5Vrms @ 0dBFS
THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)
Noise @ No-wt: <1.5uVrms
SNR @ A-wt: 128dB
Frequency Response: 20Hz–20kHz (±0.1dB)
Crosstalk: -123dB
DNR @ A-wt: 128dB

Headphone Audio Characteristics (Low Gain Mode)
Output Level (Vrms): 4Vrms @ 0dBFS
THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 124dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 124dB

Headphone Audio Characteristics (Mid Gain Mode)
Output Level (Vrms): 5.6Vrms @ 0dBFS
THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 126dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 126dB

Headphone Audio Characteristics (High Gain Mode)
Output Level (Vrms): 7Vrms @ 0dBFS
THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 127dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 127dB

Packing List
Remote control ×1, power cable ×1, USB data cable ×1, USB drive (for FW upgrade) ×1, TRIGGER cable ×1, polishing cloth ×1, user manual ×1

Dimensions
365mm (L) × 310mm (W) × 88mm (H)

Weight
Approx. 6 – 7 kg

Finish
Aluminium (Black)

MPN: DAC-Z10
SKU: EV-DACZ10

EAN / UPC / GTIN: Not publicly published
