Anthem AVM 90 Pre-Amp AV Processor

Description

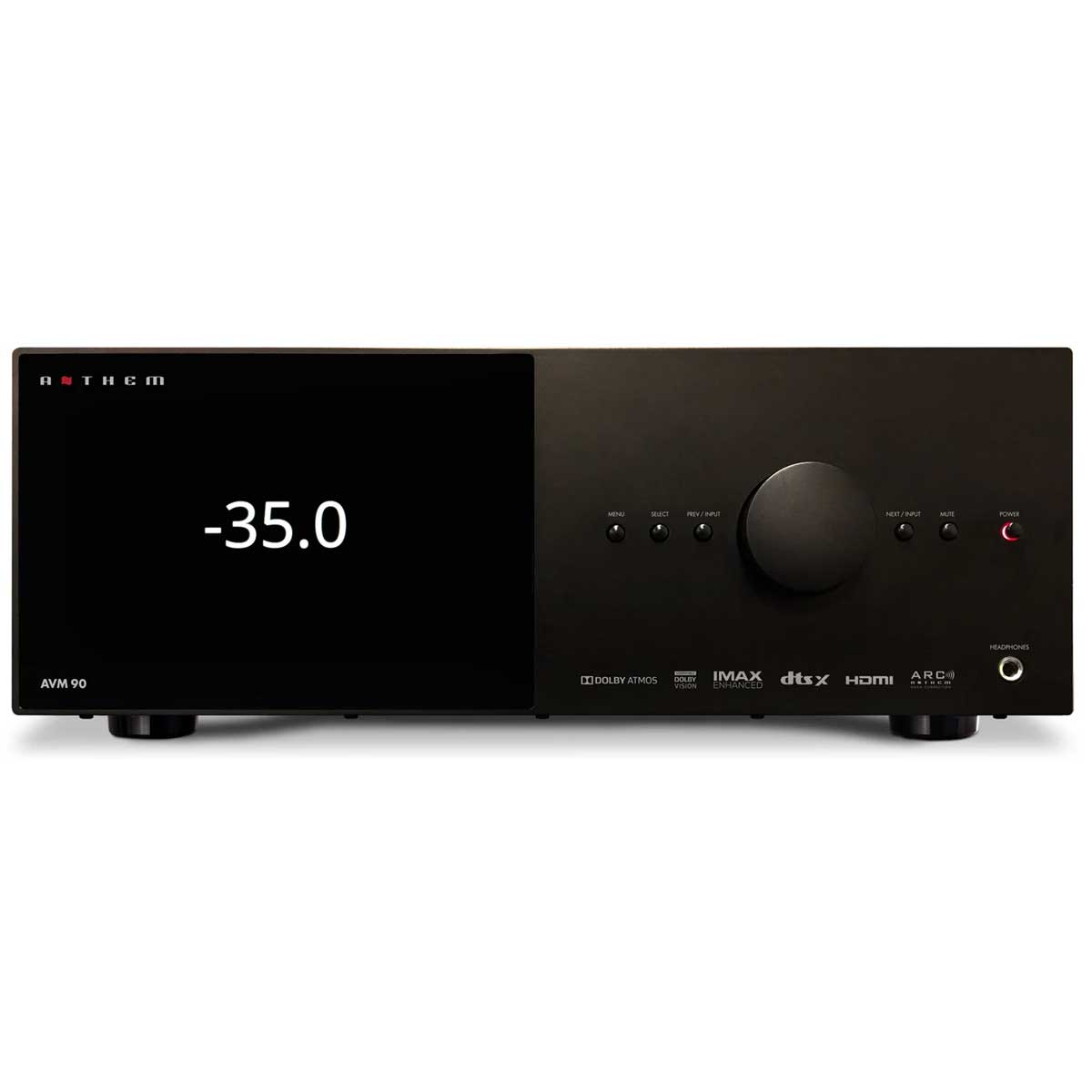

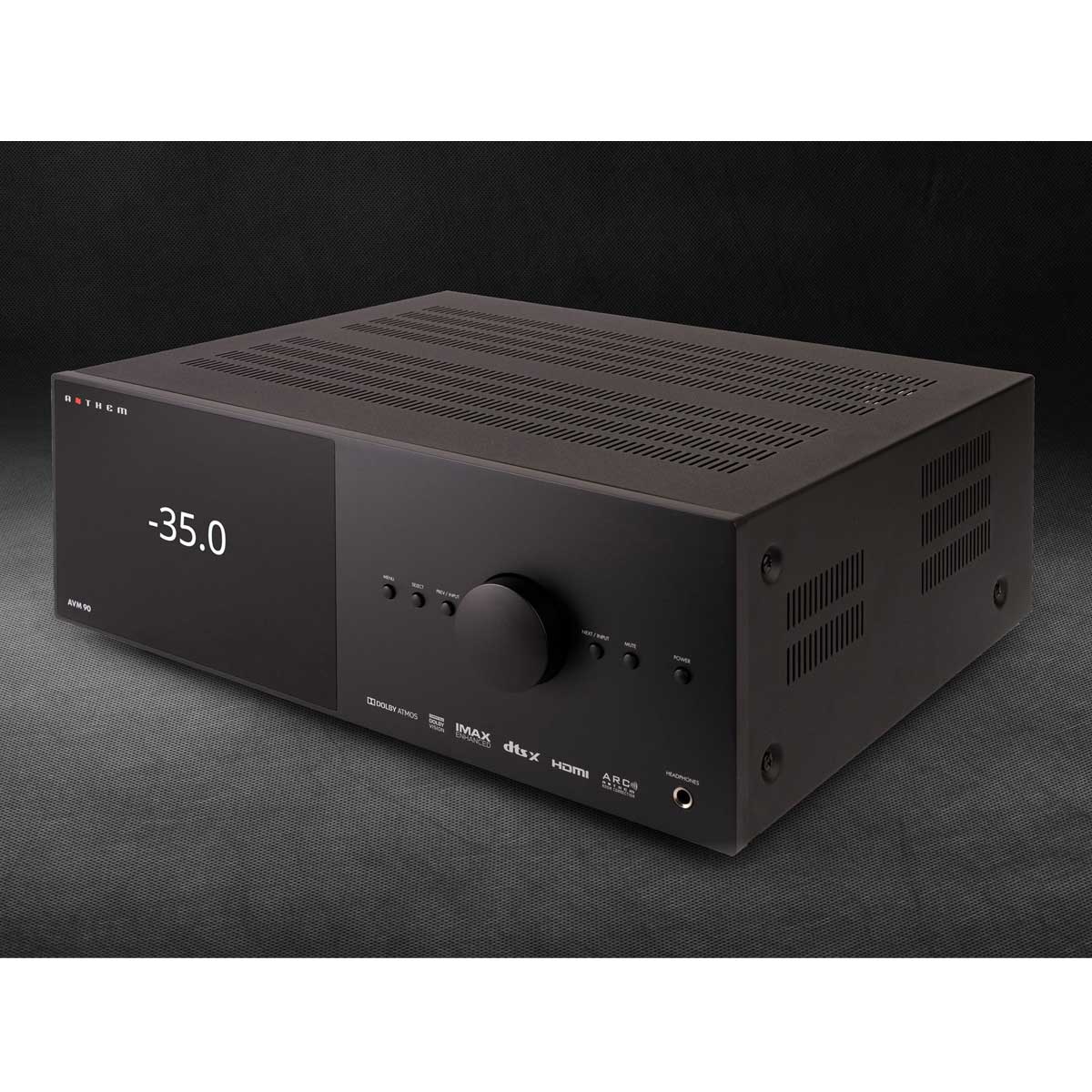

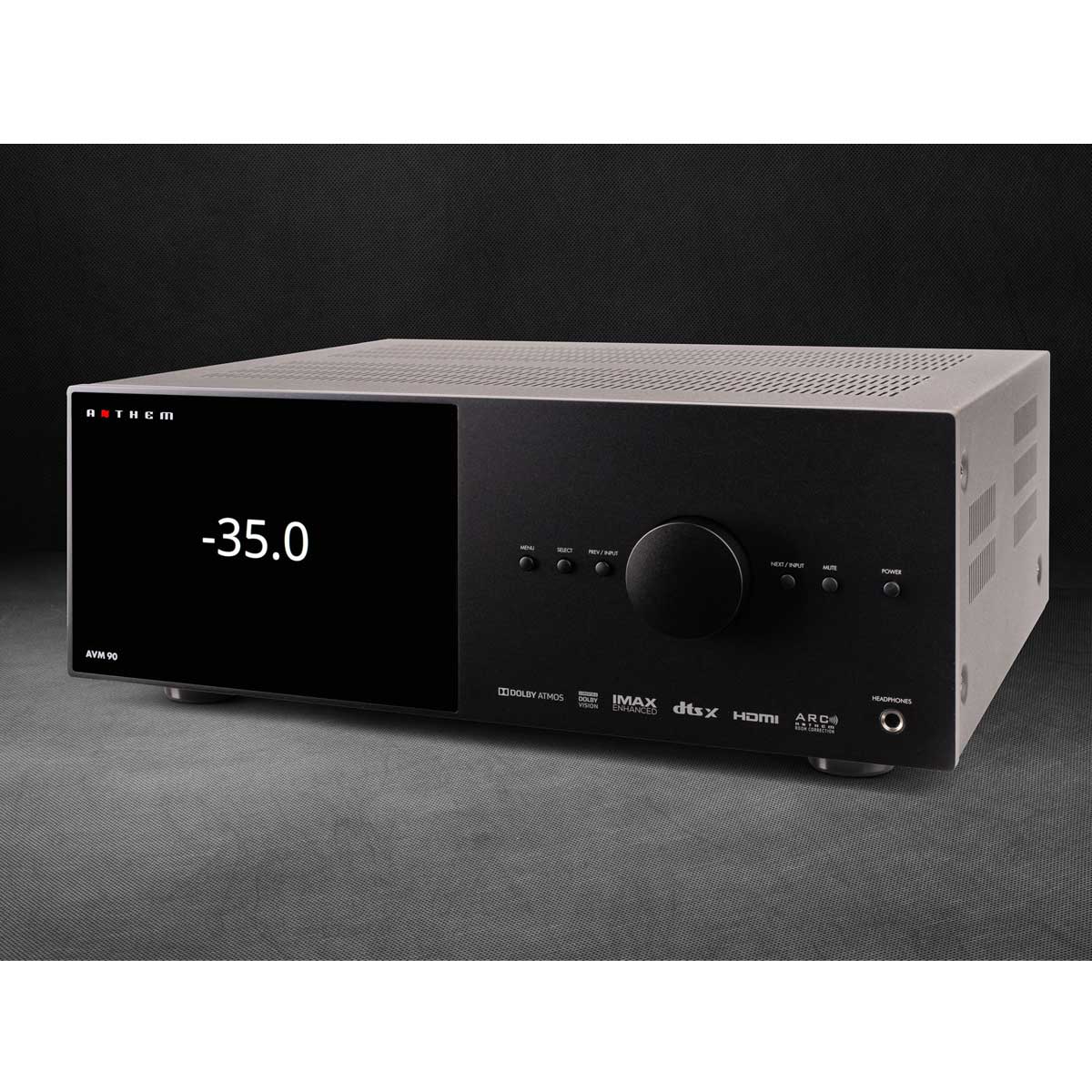

Anthem AVM 90 Pre-Amp AV Processor

The Anthem AVM 90 Pre-Amp AV Processor is their most sophisticated audio-video processor.

Every aspect of its design was scrutinized, every component carefully considered and reconsidered. It’s the culmination of everything we know and unlike anything you’ve ever heard. Meet our embodiment of excellence, meet AVM 90.

The numbers speak for themselves.

• 32bit 768kHz Digital Analog Converter (DAC)
• 1.6Ghz Dual-Core DSP With Floating 64-Bit Dual Precision States
• 7in/3 out Dedicated HDMI 8K Ports with eARC
• 19 Channel Count
• 4 Dedicated Sub Outputs

FAQ’s

1. What surround sound formats does the Anthem AVM 90 support?
   The AVM 90 supports the latest immersive audio formats including Dolby Atmos, DTS:X and IMAX Enhanced, with processing for up to 4 channels when paired with external power amplifiers for a truly reference-level home theatre experience.
2. Does the AVM 90 support 8K and 4K/120Hz video?
   With HDMI 2.1 connectivity, the AVM 90 supports 8K/60Hz and 4K/120Hz pass-through, along with HDR formats such as Dolby Vision, HDR10+ and HLG, making it ideal for next-generation gaming and premium video sources.
3. What is Anthem Room Correction (ARC Genesis)?
   ARC Genesis is Anthem’s advanced room calibration system included with the AVM 90. Using the supplied microphone and software, it precisely measures your room and optimises speaker and subwoofer performance for clearer dialogue, tighter bass and balanced surround sound.
4. Does the AVM 90 have built-in streaming capabilities?
   The AVM 90 features built-in Wi-Fi, Bluetooth, Apple AirPlay 2 and Google Chromecast, allowing easy streaming from compatible smartphones, tablets and computers.
5. Does the AVM 90 include built-in amplification?

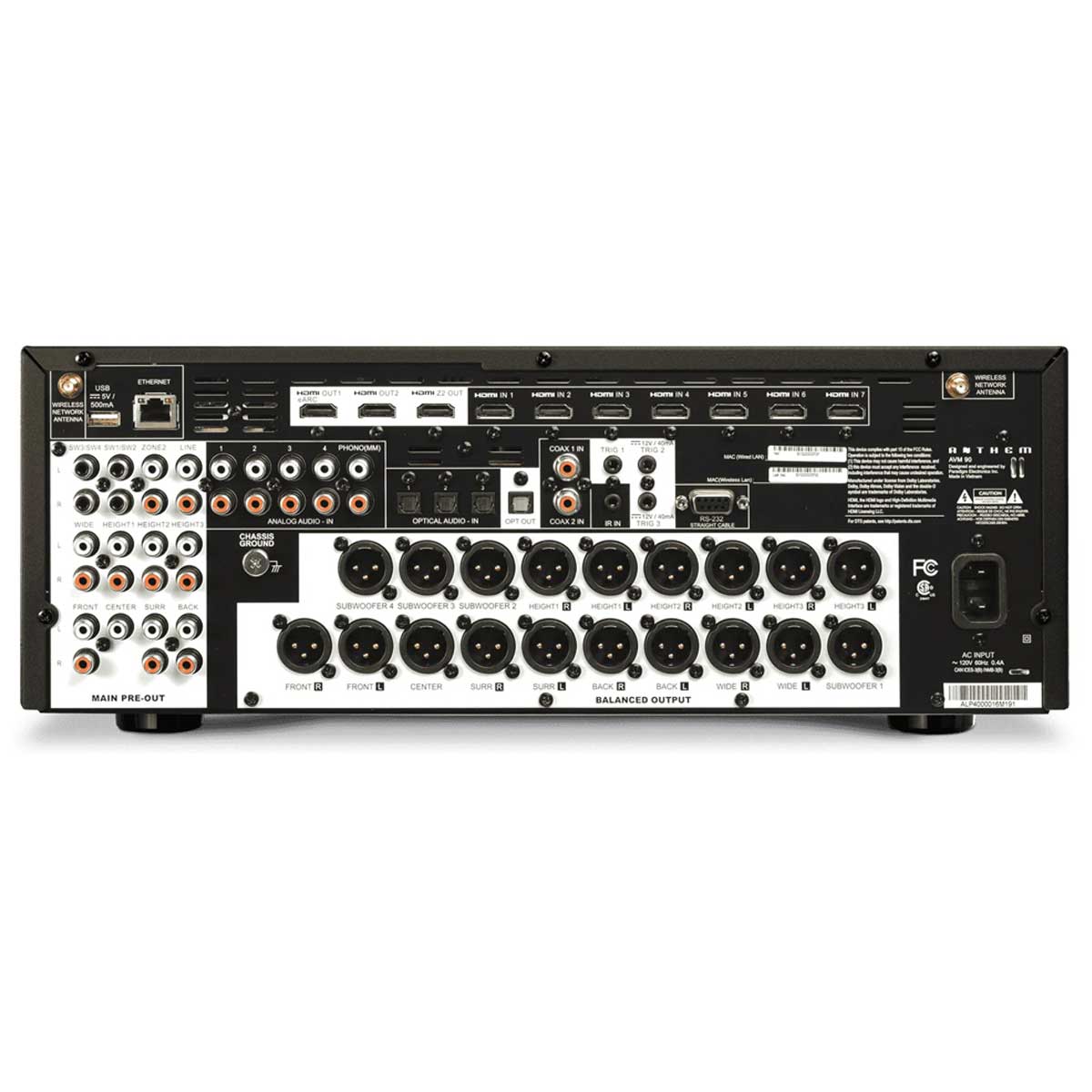

   The AVM 90 is a dedicated pre-amp/processor, meaning it requires separate power amplifiers. It offers both balanced XLR and RCA outputs, providing maximum flexibility for high-performance home theatre systems.

Features

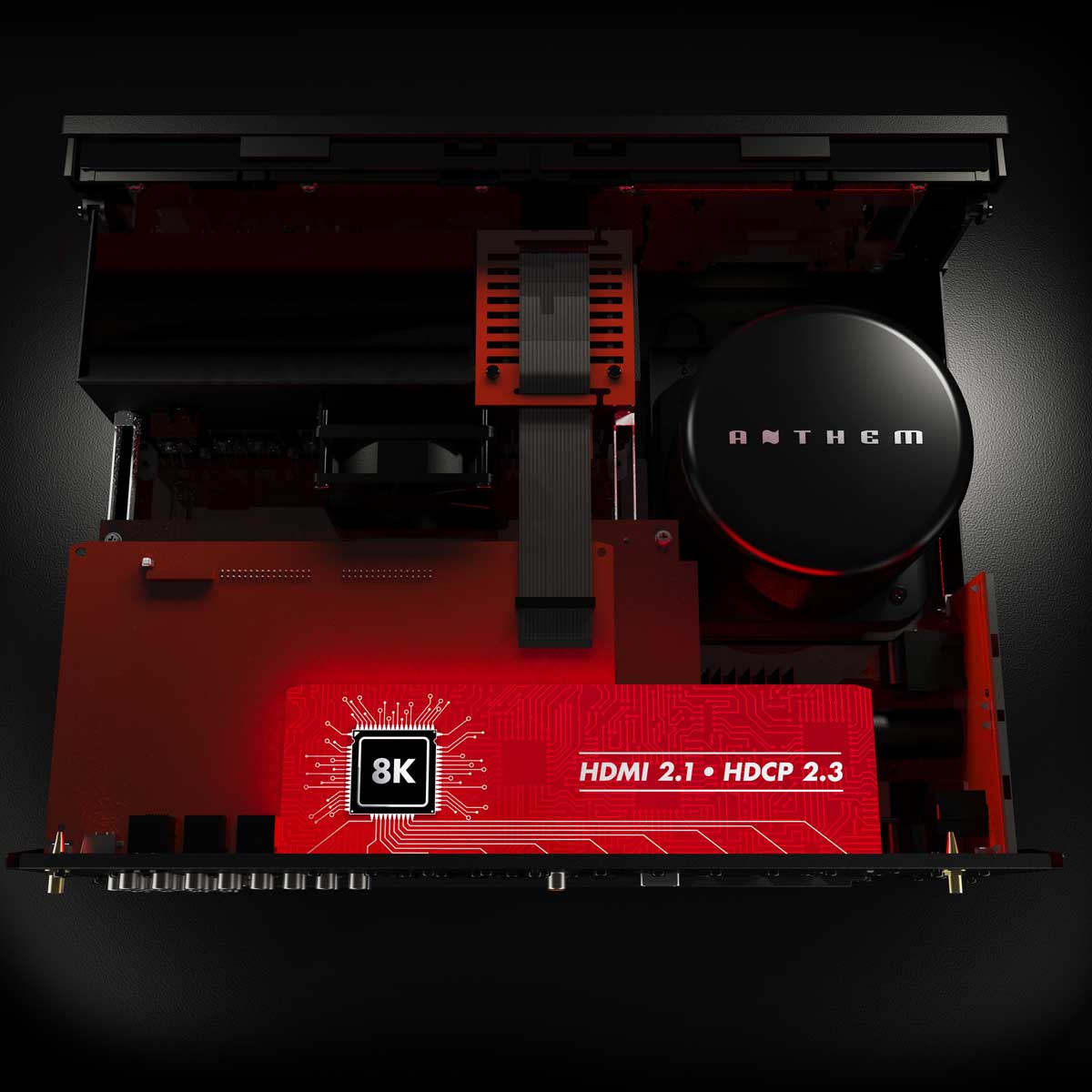

Advanced 8K HDMI Platform with e-ARC Support

Feel the power of every frame with the AVM 90 and its advanced 8K HDMI 2.1 Platform with HDCP 2.3.

Showcasing 7 dedicated 8K inputs that support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with Enhanced Audio Return Channel, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity. Also featuring the latest HDMI technology and specification, the AVM 90 allows you to take your home entertainment to the next level with HDR10+, ALLM and VRR.

The possibilities are limitless; unlock the true potential of your media with the industry’s most flexible and feature-rich HDMI platform.

Experience Gaming Like Never Before on AVM 90

It’s never been a more exciting time to be a gamer.

With the latest consoles offering up to 4K/120Hz graphics, realistic HDR and Dolby Vision dynamic range, and immersive Dolby Atmos sound, you have to make sure your Home Theater gear won’t hold you back. Enter the AVM 90, our most feature-rich AV processor to date!

Featuring the latest object-based audio and video formats

Dolby Atmos®, DTS:X®, DTS Virtual:X™, and IMAX® Enhanced processing are all supported to allow you to listen to all of your favourite audio formats up to 19-channels (15.4).

• Dolby Atmos – Sound has never sounded this good. Feel a deeper connection to the stories and music you love with sound that moves all around you with breathtaking realism.
• DTS:X – DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new audio experiences in immersion and interactivity.
• IMAX – IMAX ENHANCED is the only way to experience IMAX’s signature picture, sound and scale in the home, IMAX Enhanced combines digitally remastered 4K HDR content and DTS audio technologies with best-in-class consumer electronics products and streaming platforms.
• Dolby Vision – Feel the story’s full emotional impact, bringing your entertainment to life with an ultra-vivid picture, brighter highlights, and darker shadows.

The power to engineer your room

At Anthem, we like to take things one step further. Rather than just designing a processor, we want to engineer your room.

With the most advanced implementation of our award-winning ARC: Genesis room correction, professional calibration of your system can be achieved with the click of a button while still offering advanced functionality to refine the sound to your personal taste.

Surfaces such as windows, furnishings, and the geometry of the walls, floor, and ceiling add unwanted resonance and coloration.

Anthem Room Correction measures each speaker’s output relative to the listening area, then through a series of calculations, adjusts its output. Not only does ARC correct peaks and dips in a speaker’s frequency response, but it also preserves the beneficial acoustic attributes of a room.

SMART Engineering

At Anthem, we have a straightforward goal – to design, engineer and manufacture audio/video products that deliver exceptional performance and convenience at a reasonable price.

We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability.

Balance, in Perfect Harmony

It’s not about a single component, single feature or piece of software; it is about the totality of our design – everything working together in perfect harmony to deliver a performance that genuinely transcends the listening experience.

Flexible Streaming options to meet your needs

The AVM 90 includes a robust set of streaming options that can pull your music in from local storage or from the Internet. Thanks to Anthem’s high-speed processing and premium digital-to-analog conversion using high-end DACs, sound quality can be every bit as good as dropping a CD into a dedicated disc player.

Apple AirPlay – AVM 90 supports Apple AirPlay and AirPlay 2, letting the user stream audio content, plus songs stored on local networks, to any AirPlay-enabled device. In addition, AirPlay 2 adds support for multi device play so you can hear your music throughout the home.

• Google Chromecast – Google Chromecast, lets the user stream audio content from any Android device like a phone, tablet, or laptop to the AVM 90. If you can listen to it on your phone, it can be Cast to your processor.
• Spotify Connect – AVM 90 supports Spotify Connect allowing you to turn your smartphone into a remote and allows you to play, pause, and stream content from Spotify.
• Bluetooth – AVM 90 supports Bluetooth to stream songs stored on devices like phones, tablets, and laptops.
• Roon (Coming Soon!) – AVM 90 supports Roon allowing you to connect, stream and manage your music collection. Roon tells your music what to do and where to do it.

Complexity Simplified

Anthem’s goal is to shape how you interact with your technology, so they went the extra mile to ensure no detail is overlooked while providing the utmost flexibility when it comes to device setup.

Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the primary or secondardy zone on and off, adjust volume, change audio modes, tweak channel trims and more, for a perfect surround sound experience. You’re in control, and it’s never been easier.

Limitless Possibilities

Today’s premium home theatres need support for as many as 15 speakers and four subwoofers to handle the latest Dolby Atmos and DTS:X object-oriented audio codecs. Pair the AVM 90 A/V Processor with a stack of MCA amplifiers and you’ll hear sound that rivals the best commercial cinemas.

MCA’s scalability means you can purchase only the channels you need to power your vision of home entertainment. The AVM 90 Processor can manage configurations up to 15.4 channels (up from 11.2) with ARC Genesis Room Correction ensuring the best possible sound at every seat.

Specifications

PREAMPLIFIER (MEASURED AT XLR OUTPUT)

• Maximum Output (<0.01% THD): 10.7 VRMS, Subwoofer 11 VRMS
• Frequency Response: 20 Hz — 35 kHz (+/-0.2dB)
• Frequency Response, Analog-Direct: 20 Hz — 80 kHz (+0, -2 dB)
• THD+N (4 Vrms output): -102 dB
• S/N Ratio (4 Vrms output, IEC-A filter): 115 dB
• XLR Configuration: Pin 1: Ground, Pin 2: Positive, Pin 3: Negative

POWER CONSUMPTION

• Typical Load: 60 W
• Standby: 0.3 W
• Standby IP Control Enabled: 1.8 W
• Standby HDMI Bypass Enabled: 4.9 W

DIMENSIONS

• Height (without feet): 6″ (15.24 cm)
• Height with Rackmount Kit: 4U
• Width: 17″ (43.18 cm)
• Depth (including wifi ant not power cord): 14-1/2″ (36.4 cm)
• Weight: 22.1 lbs, 10.1 Kg

POWER REQUIREMENT

• 120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
• 220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
